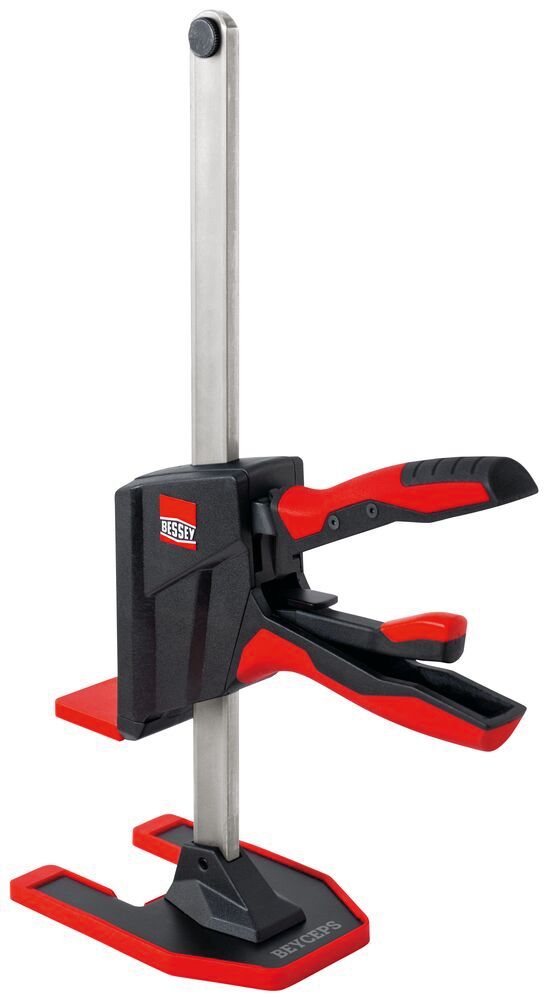

Lifting, lowering or aligning with up to 180 kg! Utilisation area Lifting / Spreading: 5-230mm, Utilisation area clamping: 170-390 mm, Rail 22x8 mm, Weight: 1,60 kg. -Lifting force up to 1,800 N / 180 kg / 400 lbs -For lifting (up to 8 mm per operation of the pump lever), lowering (up to 4 mm per operation of the lowering lever) and aligning workpieces with millimeter precision, gently and safely with just one hand -Ergonomic and safe handling, as the pump lever made of 2-component plastic is positioned on the top and the two levers for fine lowering and releasing are arranged separately below it. -Closed plastic housing protects the mechanism from dust, dirt and chips and prevent strangers from getting trapped -Can be converted without tools for clamping tasks -Protective caps for stand and lifting plate – included in the scope of livery – prevent damage to sensitive surfaces -CE labelling

Powerful and versatile: The BEYCEPS enables assembly work with a lifting force of up to 180 kg. There are many possible applications in both the professional and DIY sectors:

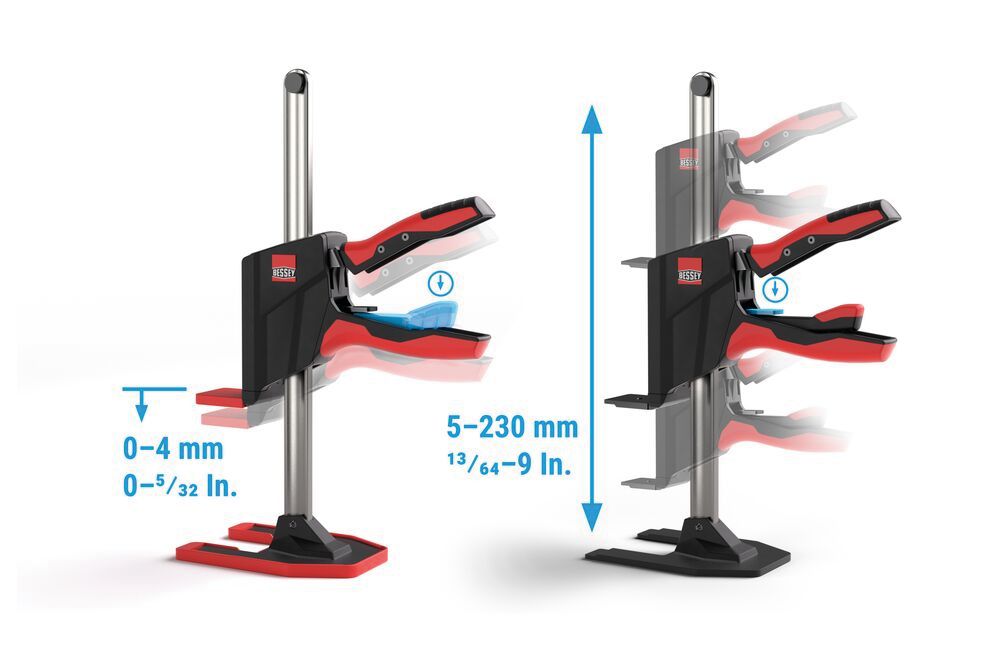

• -due to the large usable range when lifting or spreading from 5 to 230 mm (without mounted protective cap

on the stand).

• -for work with a working range of 170 to 390 mm thanks to the quick, tool-free conversion for clamping

by combining it with the BEY-IK installation kit available as an accessory.

Convenient and safe handling: With the BEYCEPS, workpieces can be raised, lowered and aligned gently and with millimeter precision using just one hand. Operation is ergonomic, intuitive and safe:

• -thanks to the pump lever made of 2-component plastic placed on the top.
• -due to the separate levers for fine lowering and releasing arranged under the pump lever. This prevents accidental release.

Protected and gentle working: When developing the one-handed lifting tool BEYCEPS, great importance was also attached to protecting the product, user and workpiece. This is evident:

• -thanks to the closed plastic housing. This protects the internal mechanics from dust, dirt and chips and prevents strangers from becoming trapped.
• -thanks to the protective caps for the stand and lifting plate included in the scope of delivery. They are easy to attach and prevent damage to workpieces with sensitive surfaces.
