Single-Edged Cable Cutter With Bi-Material Handle
Loading...
- Reference code: 9371160401
- EAN Code: 3303809013064
Request the posting of this product in
SEAP/SICAP
SINGLE-EDGED CABLE CUTTER WITH BI-MATERIAL HANDLE - Description

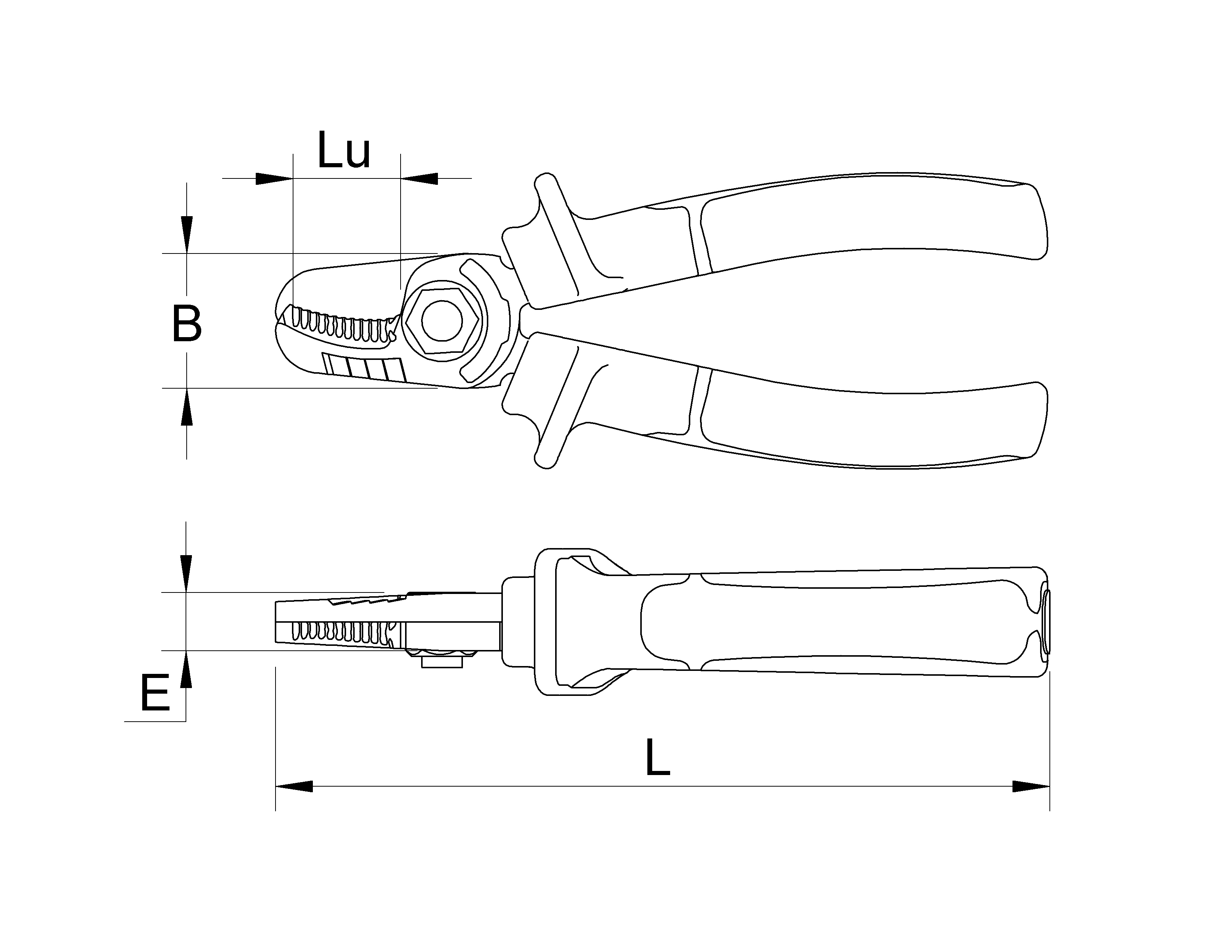

manson: bimaterial. utilizare pentru taierea cablurilor electrice din aluminiu si cupru. Dimensiuni: B: 28 mm. E: 12 mm. Lu: 23 mm. Γ max: 16 mm.
SINGLE-EDGED CABLE CUTTER WITH BI-MATERIAL HANDLE - More Details
Strips and cuts copper and aluminium cables.High-precision blades for smooth, clean cuts.Ergonomic bi-material handle. Forged, oil-hardened steel. Double cutting edge: 1st cut of the sheath in the front part of the cutting edges and 2nd cut of the conductor in the rear part of the cutting edges. Capacity: diameter from 16 to 50 mm2.Not suitable for steel wire, aluminium alloys and cold-drawn copper conductors.
Specifications
| L mm | B mm | E mm | Lu mm | Cutting capacity | G |  g |  | ||
|---|---|---|---|---|---|---|---|---|---|
| 160 | 28 | 12 | 23 | Γ 16 mm / 50 mm2 | E | 200 | 9371160401 | 1 | 3303809013064 |
