Diagonal Cutting Pliers
Loading...
- Reference code: 9305200001
- EAN Code: 3303809305206
Request the posting of this product in
SEAP/SICAP
DIAGONAL CUTTING PLIERS - Description
NF ISO 9654/5749 - DIN ISO 5238 - NF E 73-105. PVC handle.
DIAGONAL CUTTING PLIERS - More Details
"COMPACT: PVC sleeves have the advantage of being thin and provide a lightness and maneuverability appreciated in certain trades. The small footprint makes it an asset in a toolbox. QUALITY: Forged and hardened chrome-vanadium steel heads. The metal parts are partially polished. Thus, the direct light of a punctual illumination dazzles less. NF ISO 9654/5749 - DIN ISO 5238 - NF E 73-105."
Specifications

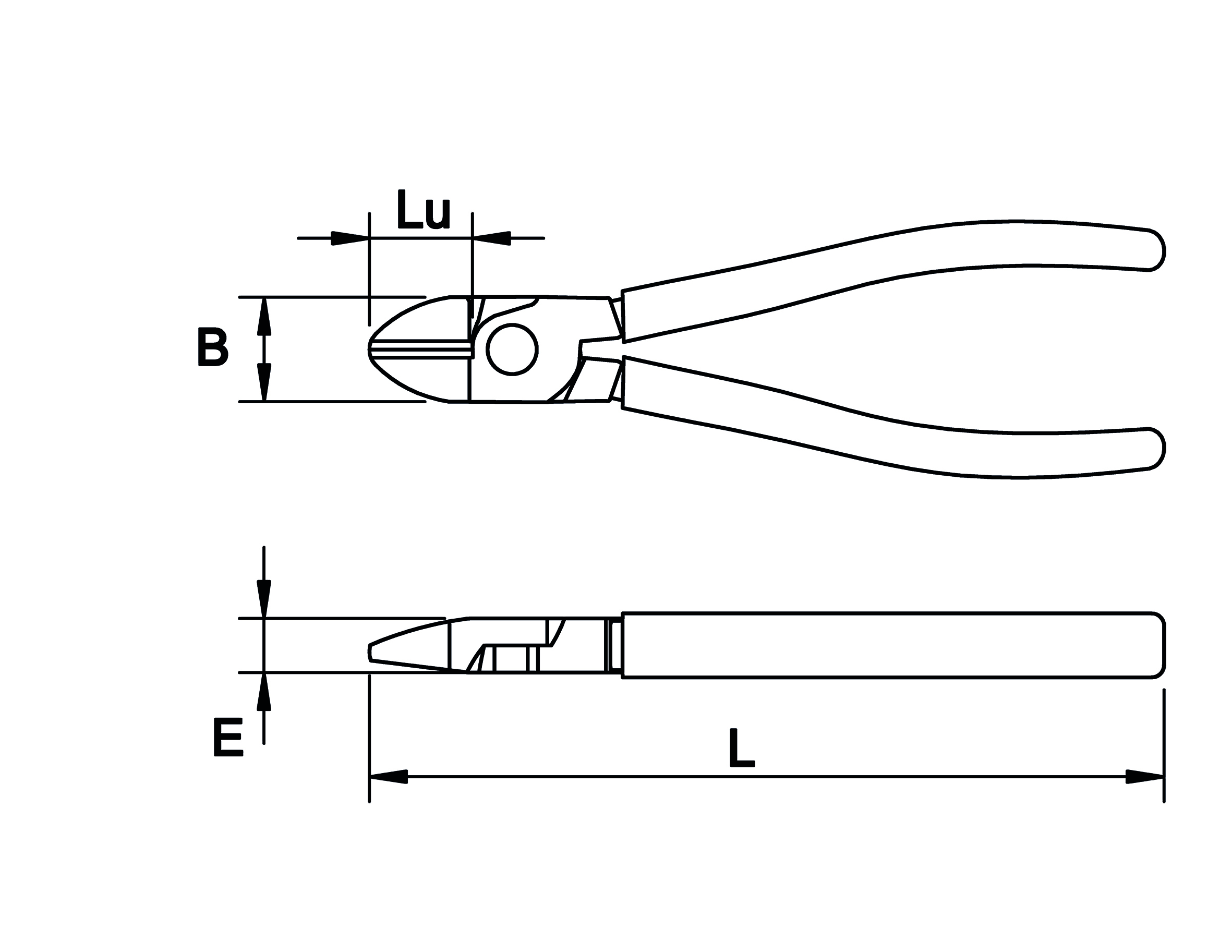

| L mm | B mm | Lu mm | E mm | L mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|---|
| 145 | 19,5 | 19 | 10 | 142 | 145 | E | 9305140001 | 1 | 3303809305145 |
| 160 | 21,5 | 22 | 11 | 162 | 185 | E | 9305160001 | 1 | 3303809305169 |
| 180 | 24 | 24,5 | 12 | 182 | 240 | E | 9305180001 | 1 | 3303809305183 |
| 200 | 28 | 19 | 12 | 202 | 280 | E | 9305200001 | 1 | 3303809305206 |
