1/2" 6-Point Deep Impact Sockets

Reference code: 9222300501
EAN Code: 3303801701075

Request the posting of this product in SEAP/SICAP

1/2" 6-POINT DEEP IMPACT SOCKETS - Description

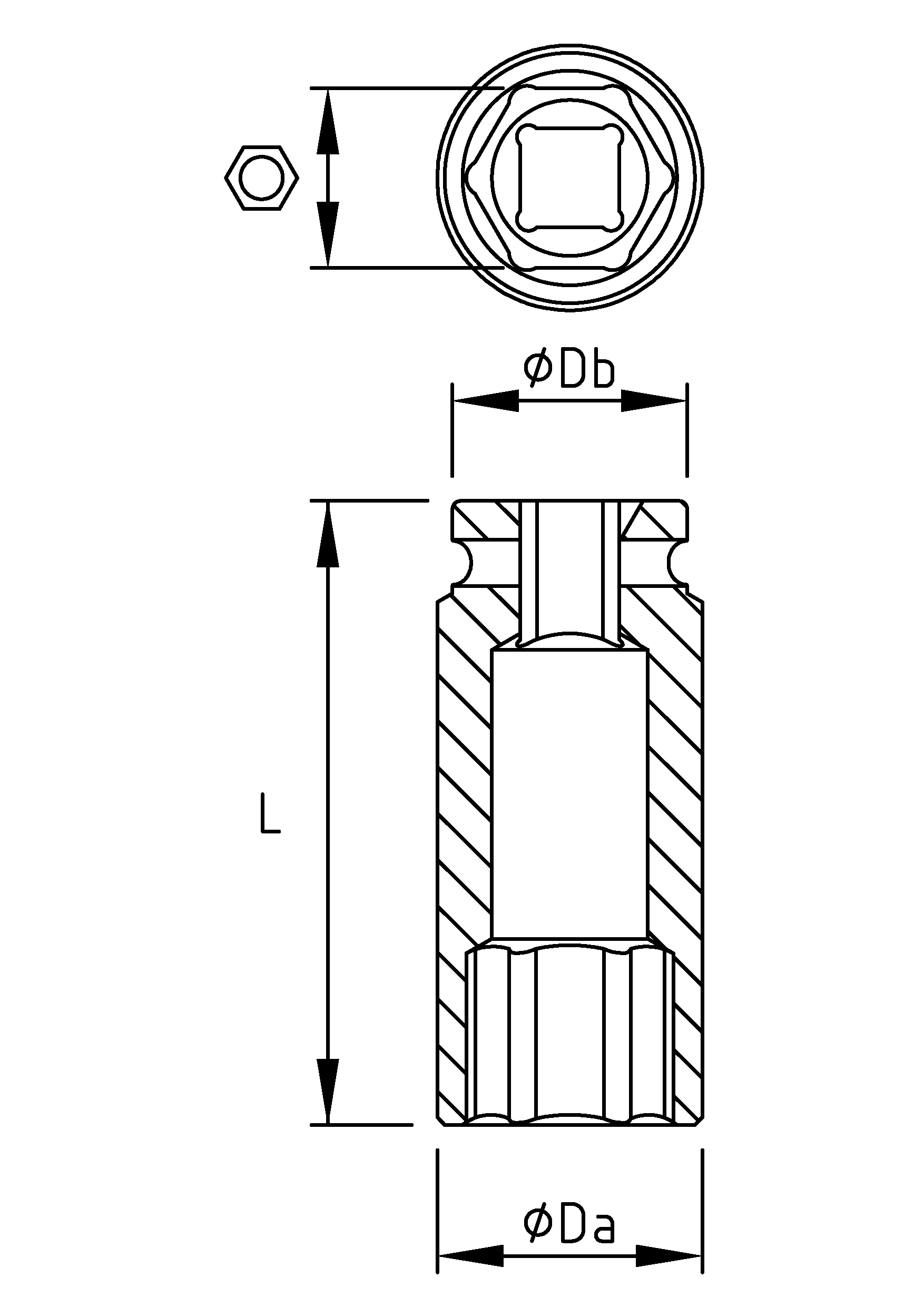

ISO 2725-2. DIN 3121. DIN 3129. Dimensiuni: ØDb: 30 mm. ØDa: 44 mm. L: 80 mm.

1/2" 6-POINT DEEP IMPACT SOCKETS - More Details

Designed to withstand the stresses of power tools: impact wrenches, screwdrivers. Nota: the pin aand the O-ring are not included. QUALITY: very high yield strength and resistance: quality steel and heat treatment.

Specifications

Dim mm	ØDb mm	ØDa mm	L mm	g	G
10	25	17	80	135	E	9222100501	1	3303801700863
11	25	18.5	80	140	E	9222110501	1	3303801701068
13	25	21	80	160	E	9222130501	1	3303801700801
14	25	22.5	80	170	E	9222140501	1	3303801701044
16	30	25	80	230	E	9222160501	1	3303801700757
17	30	26	80	240	E	9222170501	1	3303801701006
18	30	27.5	80	255	E	9222180501	1	3303801700504
19	30	28.5	80	255	E	9222190501	1	3303801700733
21	30	31	80	285	E	9222210501	1	3303801700450
22	30	32.5	80	295	E	9222220501	1	3303801700665
24	30	35	80	360	E	9222240501	1	3303801700429
27	30	38.5	80	385	E	9222270501	1	3303801701082
28	30	40	80	420	E	9222280501	1	3303801700603
30	30	42	80	400	E	9222300501	1	3303801701075
32	30	44	80	470	E	9222320501	1	3303801700818
