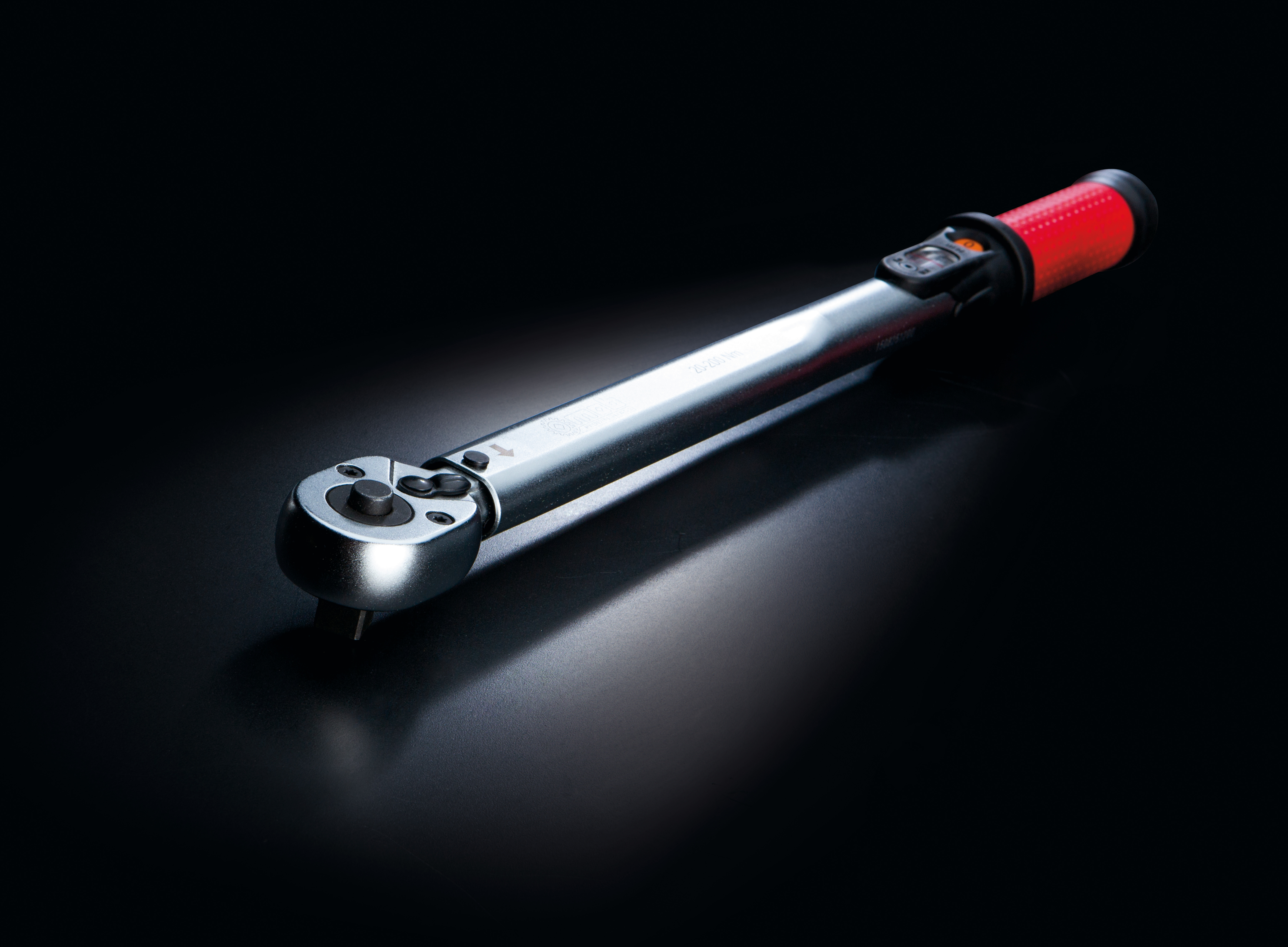

Initial 1/2'' Torque Wrench

Loading...
  • Reference code: 9074201201
  • EAN Code: 3303800008366
Seap logo Request the posting of this product in SEAP/SICAP

INITIAL 1/2'' TORQUE WRENCH - Description

BS EN 26789 ISO 6789 U.S.A. GGG-W-00686

INITIAL 1/2'' TORQUE WRENCH - More Details

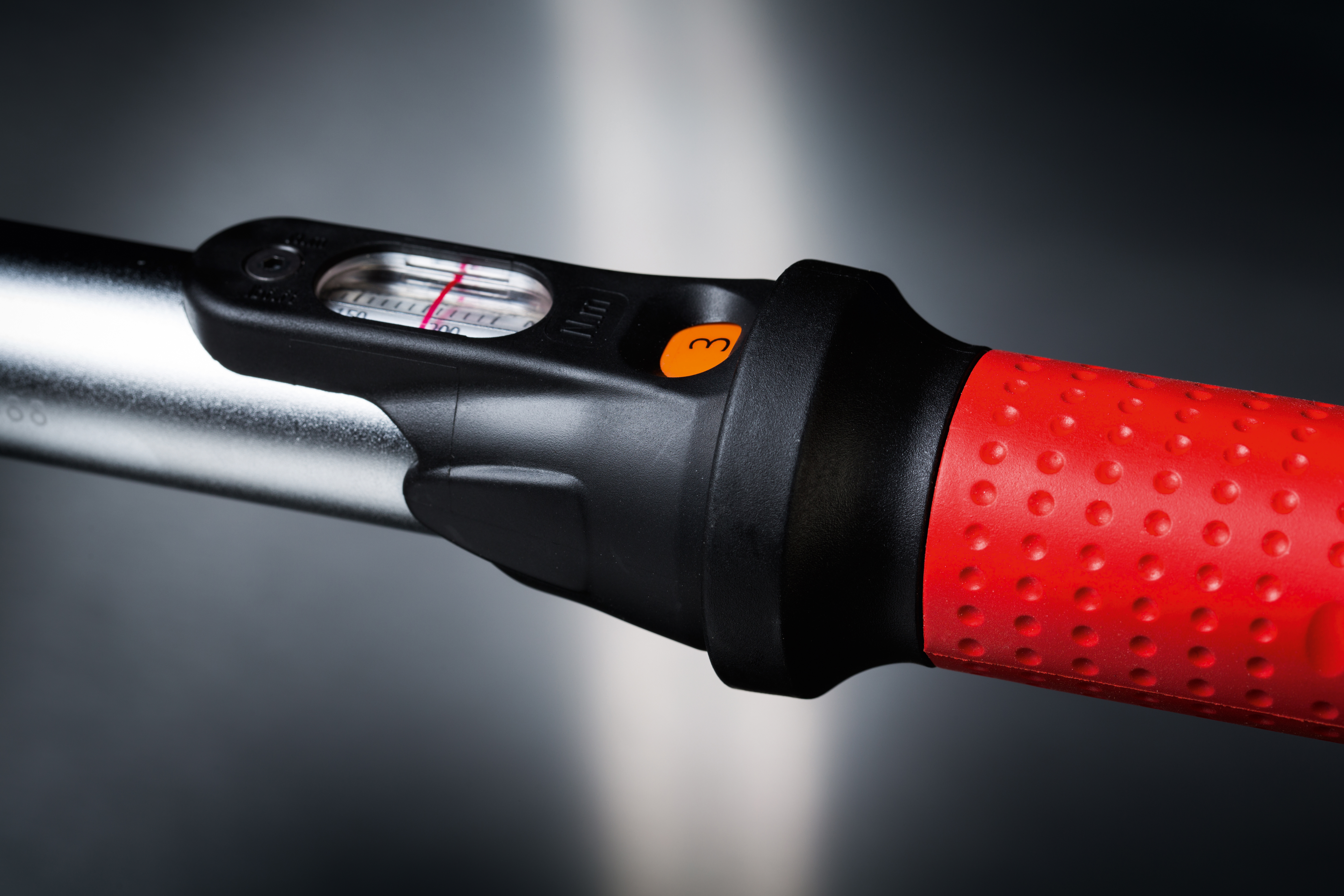

MECHANICAL TORQUE WRENCH 1 click and 1 jerk signal that torque has been reached.Direction change lever.Bush release button.1/2" drive fixed ratchet - 72 teeth - 5Β° recovery angle.Comfortable bi-material handle. PRECISIONAccuracy + or - 3%. Complies with standards: BS EN 26789 - ISO 6789 - U.S.A. GGG-W-00686.Dual vernier adjustment system: rapid approach and fine adjustment on 2nd orange display.Dual Nm and lbf.ft scales. SAFETYTorque calibration by easy rotation of the handle.Locking button prevents unintentional torque changes when using the wrench. RESISTANCEHandle and dial materials resistant to chemicals used in the automotive and aerospace industries.Corrosion-resistant, easy-to-clean force transmission shaft.Dial also resistant to chemicals.Bi-material handle provides excellent grip even in greasy environments. TRACEABILITYIdentification number engraved on key.Delivered in a plastic case with calibration certificate and instructions.

Specifications

N.mL mmH mm gG
10-100 400 32 855 G5 9074101201 1 3303800003781
20-200 500 36 1120 G5 9074201201 1 3303800008366
60-300 630 36 1475 G5 9074341201 1 3303800008380
