T Handle Socket Wrench
Loading...
- Reference code: 9073120001
- EAN Code: 3303809008923
Request the posting of this product in
SEAP/SICAP
T HANDLE SOCKET WRENCH - Description
Chrome-vanadium steel. Forged in one piece. Bi-material handle.
T HANDLE SOCKET WRENCH - More Details
6-point opening.Chrome vanadium steel.1-piece forged manufacturing without welding for greater strength.T-shaped handle for greater power and speed.Comfortable bi-material handle for a perfect grip.
Specifications

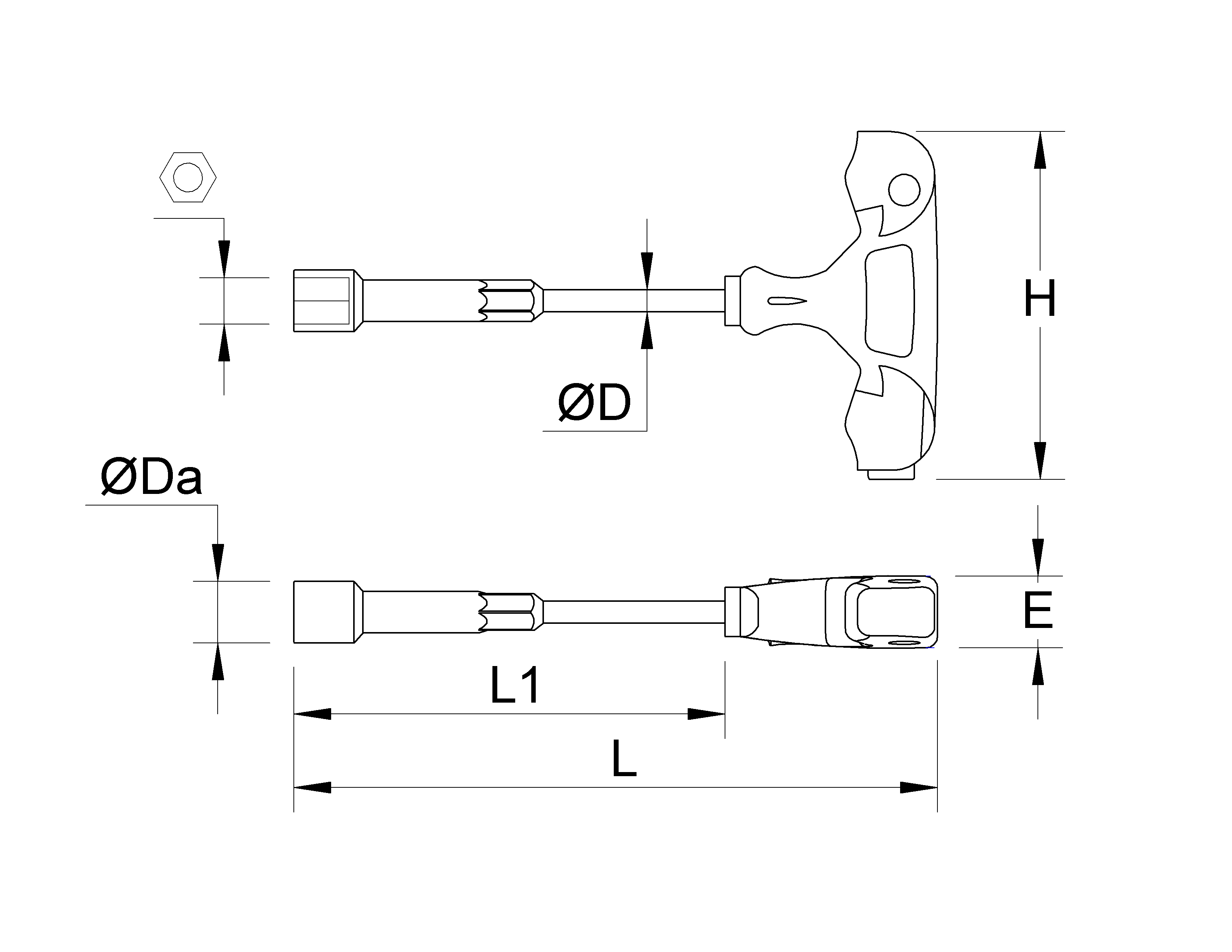

| Dim mm | L mm | l1 mm | E mm | H mm | ΓD mm | ΓDa mm | G |  g |  | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 208 | 140 | 23.2 | 112 | 7 | 9 | E | 135 | 9073050001 | 1 | 3303809008862 |
| 6 | 208 | 140 | 23.2 | 112 | 7 | 9 | E | 135 | 9073060001 | 1 | 3303809008879 |
| 7 | 208 | 140 | 23.2 | 112 | 7 | 11.5 | E | 155 | 9073070001 | 1 | 3303809008886 |
| 8 | 208 | 140 | 23.2 | 112 | 7 | 11.5 | E | 145 | 9073080001 | 1 | 3303809008893 |
| 10 | 208 | 140 | 23.2 | 112 | 7 | 13.5 | E | 145 | 9073100001 | 1 | 3303809008909 |
| 11 | 208 | 140 | 23.2 | 112 | 7 | 17 | E | 175 | 9073110001 | 1 | 3303809008916 |
| 12 | 208 | 140 | 23.2 | 112 | 7 | 17 | E | 165 | 9073120001 | 1 | 3303809008923 |
| 13 | 208 | 140 | 23.2 | 112 | 7 | 20 | E | 180 | 9073130001 | 1 | 3303809008930 |
| 14 | 208 | 140 | 23.2 | 112 | 7 | 20 | E | 175 | 9073140001 | 1 | 3303809008947 |
