T Handle Torx® Keys
Loading...
- Reference code: 9069090001
- EAN Code: 3303800010048
Request the posting of this product in
SEAP/SICAP
T HANDLE TORX® KEYS - Description
Chrome-vanadium steel. Forged in one piece. Bi-material handle.
T HANDLE TORX® KEYS - More Details
Chrome vanadium steel. Bi-material handle for a comfortable grip: polypropylene and elastomer. 1-piece, seamless forged manufacturing for greater strength. Phosphate-coated main cavity for a better grip and no splintering. T-shaped handle for faster, more powerful gripping.
Specifications

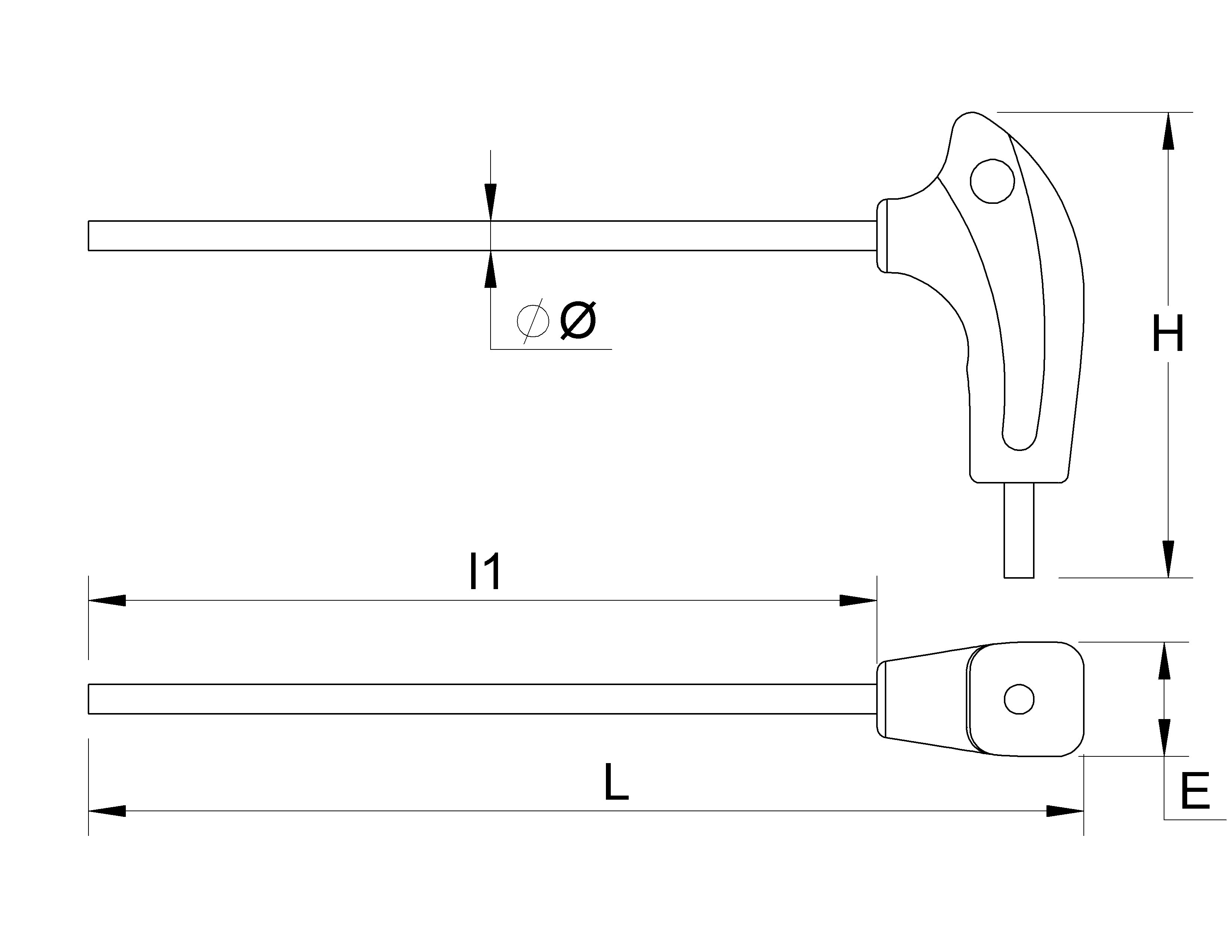

| Type | L mm | ØDaxL1 mm | H mm | E mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|---|
| T8 | 142 | 4x110 | 70 | 19 | 29 | E | 9069080001 | 1 | 3303800010031 |
| T9 | 142 | 4x110 | 70 | 19 | 29 | E | 9069090001 | 1 | 3303800010048 |
| T10 | 142 | 4x110 | 70 | 19 | 29 | E | 9069100001 | 1 | 3303800010055 |
| T15 | 142 | 4x110 | 70 | 19 | 29 | E | 9069150001 | 1 | 3303809007001 |
| T20 | 142 | 4x110 | 70 | 19 | 29 | E | 9069200001 | 1 | 3303809007018 |
| T25 | 206 | 6x160 | 93 | 25 | 85 | E | 9069250001 | 1 | 3303809007025 |
| T27 | 206 | 6x160 | 93 | 25 | 86 | E | 9069270001 | 1 | 3303800010062 |
| T30 | 206 | 6x160 | 93 | 25 | 86 | E | 9069300001 | 1 | 3303809007032 |
| T40 | 231 | 7x185 | 93 | 25 | 112 | E | 9069400001 | 1 | 3303800010079 |
| T50 | 270 | 9,5x215 | 122 | 25 | 140 | E | 9069500001 | 1 | 3303800010086 |
