T Handle Ball Hex Keys
Loading...
- Reference code: 9068040001
- EAN Code: 3303809006936
Request the posting of this product in
SEAP/SICAP

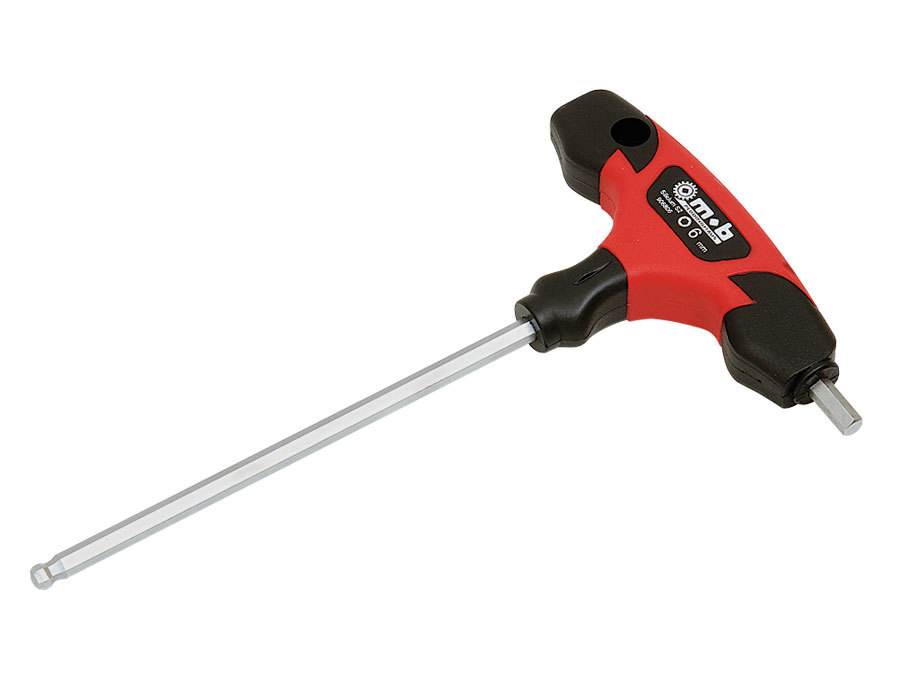

T HANDLE BALL HEX KEYS - Description
Chrome vanadium steel. Forged in 1 piece. Bi-material handle.
T HANDLE BALL HEX KEYS - More Details
Chrome vanadium steel. 1-piece forged manufacturing, no welding, much stronger. Phosphate-coated main cavity for better grip and no shine. Bimaterial handle with black polypropylene and red elastomer. The T-shaped handle provides a stronger, faster grip than a simple hex key.The spherical head makes it easy to reach, with a 30Β° angle.
Specifications

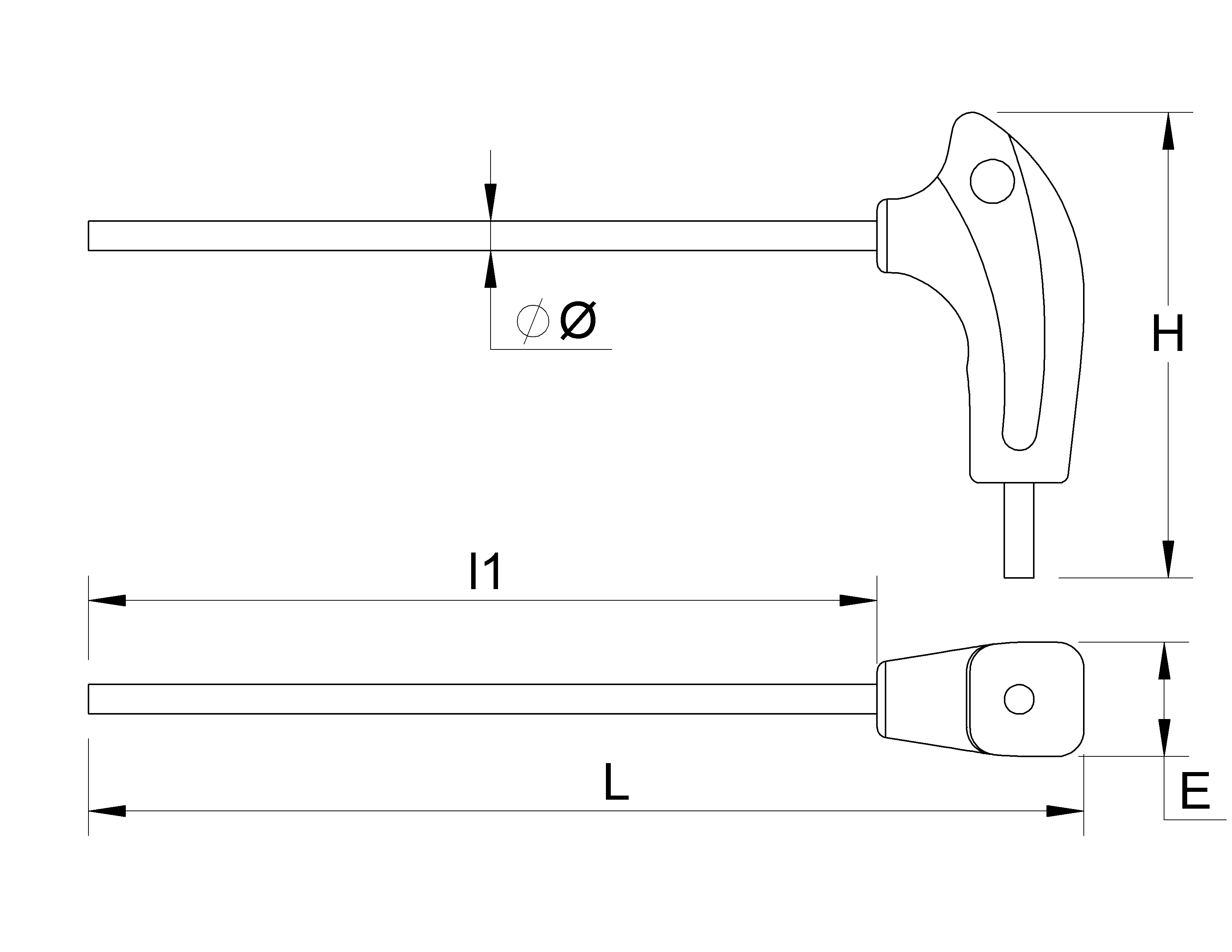

| S mm | L mm | l1 mm | H mm | E mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 150 | 100 | 96 | 18,5 | 50 | E | 9068040001 | 1 | 3303809006936 |
| 5 | 218 | 150 | 127 | 23,5 | 110 | E | 9068050001 | 1 | 3303809006943 |
| 6 | 218 | 150 | 127 | 23,5 | 140 | E | 9068060001 | 1 | 3303809006967 |
| 8 | 268 | 200 | 132 | 23,5 | 210 | E | 9068080001 | 1 | 3303809006974 |
| 10 | 268 | 200 | 132 | 23,5 | 280 | E | 9068100001 | 1 | 3303809006981 |
