Stillson Pipe Wrenches
Loading...
- Reference code: 9021250001
- EAN Code: 3303809002549
Request the posting of this product in
SEAP/SICAP
STILLSON PIPE WRENCHES - Description
Single-spring system
STILLSON PIPE WRENCHES - More Details
SINGLE-SPRING SYSTEMMore practical than the 2-spring system: One-handed operation.More effective on small diameters.
ROBUSTFully forged body withstands extreme site conditions.
FORGED AND HARDENED JAWS 56 HRC hardness = long service life. Precise wheel approach.
ROBUSTFully forged body withstands extreme site conditions.
FORGED AND HARDENED JAWS 56 HRC hardness = long service life. Precise wheel approach.
Specifications

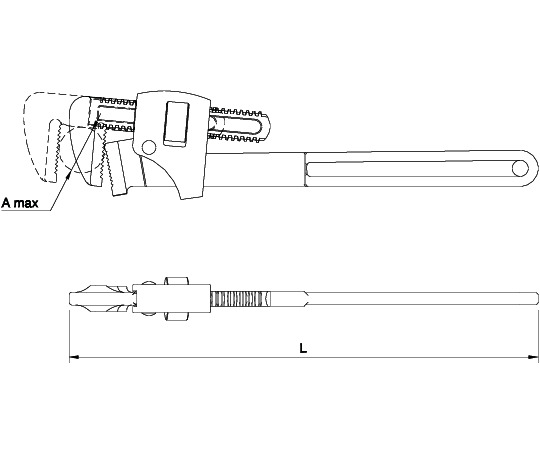

| L mm '' | A max mm |  g | G |  | |||
|---|---|---|---|---|---|---|---|
| 250-10'' | 34 | 1'' | 580 | E | 9021250001 | 1 | 3303809002549 |
| 350-14'' | 49 | 1'' 1/2 | 1060 | E | 9021350001 | 1 | 3303809002556 |
| 450-18'' | 60 | 2'' | 1750 | E | 9021450001 | 1 | 3303809002525 |
| 600-24'' | 76 | 2'' 1/2 | 2830 | E | 9021600001 | 1 | 3303809002570 |
| 900-36'' | 102 | 3'' 1/2 | 5750 | E | 9021900001 | 1 | 3303809002587 |
