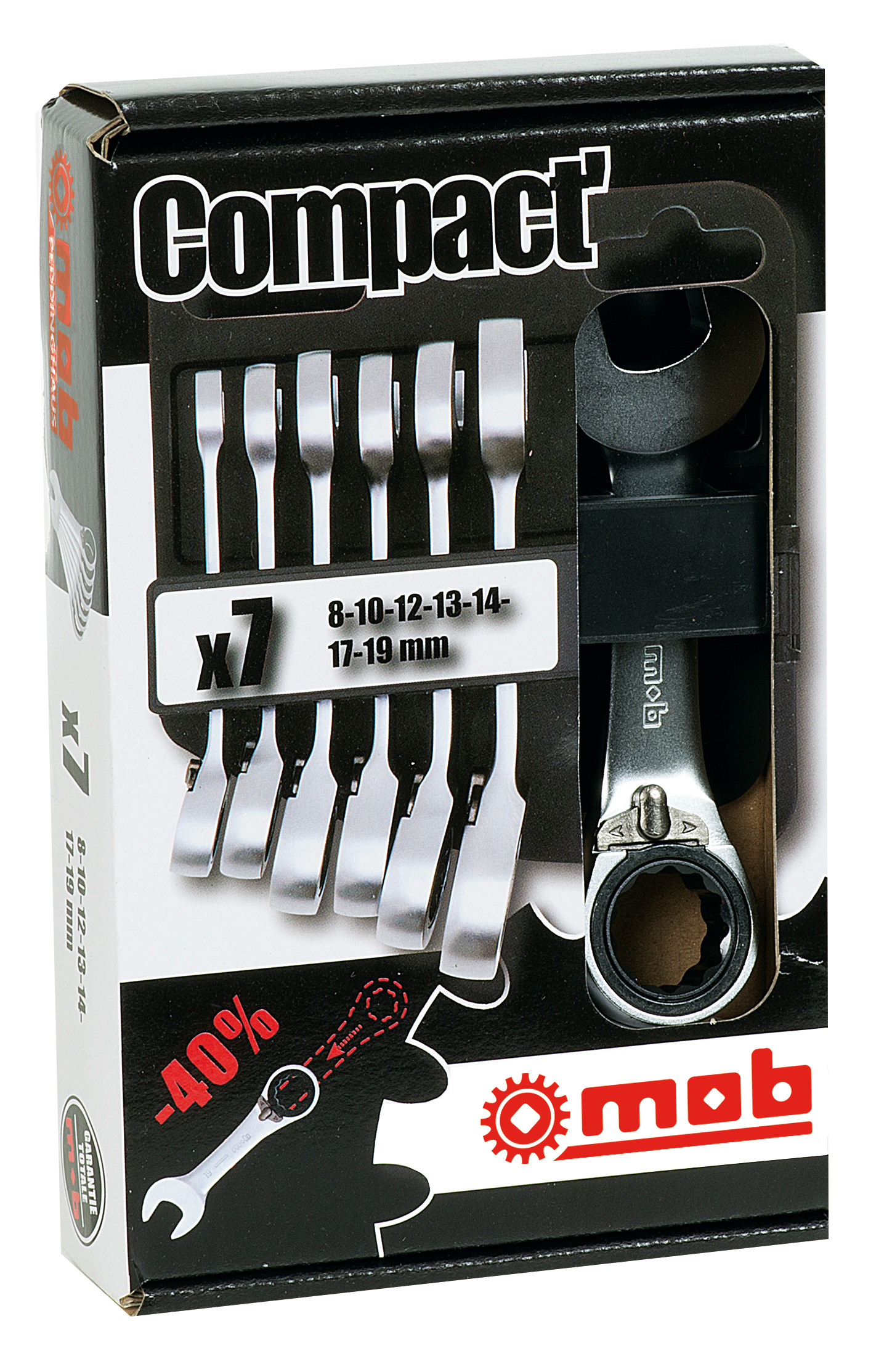

Compact' Ratcheting Combination Spanners
Loading...
- Reference code: 9013130001
- EAN Code: 3303809010575
Request the posting of this product in
SEAP/SICAP
COMPACT' RATCHETING COMBINATION SPANNERS - Description
SHORT VERSION
COMPACT' RATCHETING COMBINATION SPANNERS - More Details
COMPACT: 40 % shorter than a classic ratcheting combination spanner. Ideal for places that are difficult to reach. PERFORMANCE: quick and reversible direction shift: better productivity. 5Β° increments. SAFETY: closed ratchet system - not possible to damage the inner teeth from the outside. QUALITY: chrome-vanadium steel. Hardened. 48 HRC (+/- 2). Sanding. Chromed and polished. Easy to clean. Comfortable, ergonomic handle.

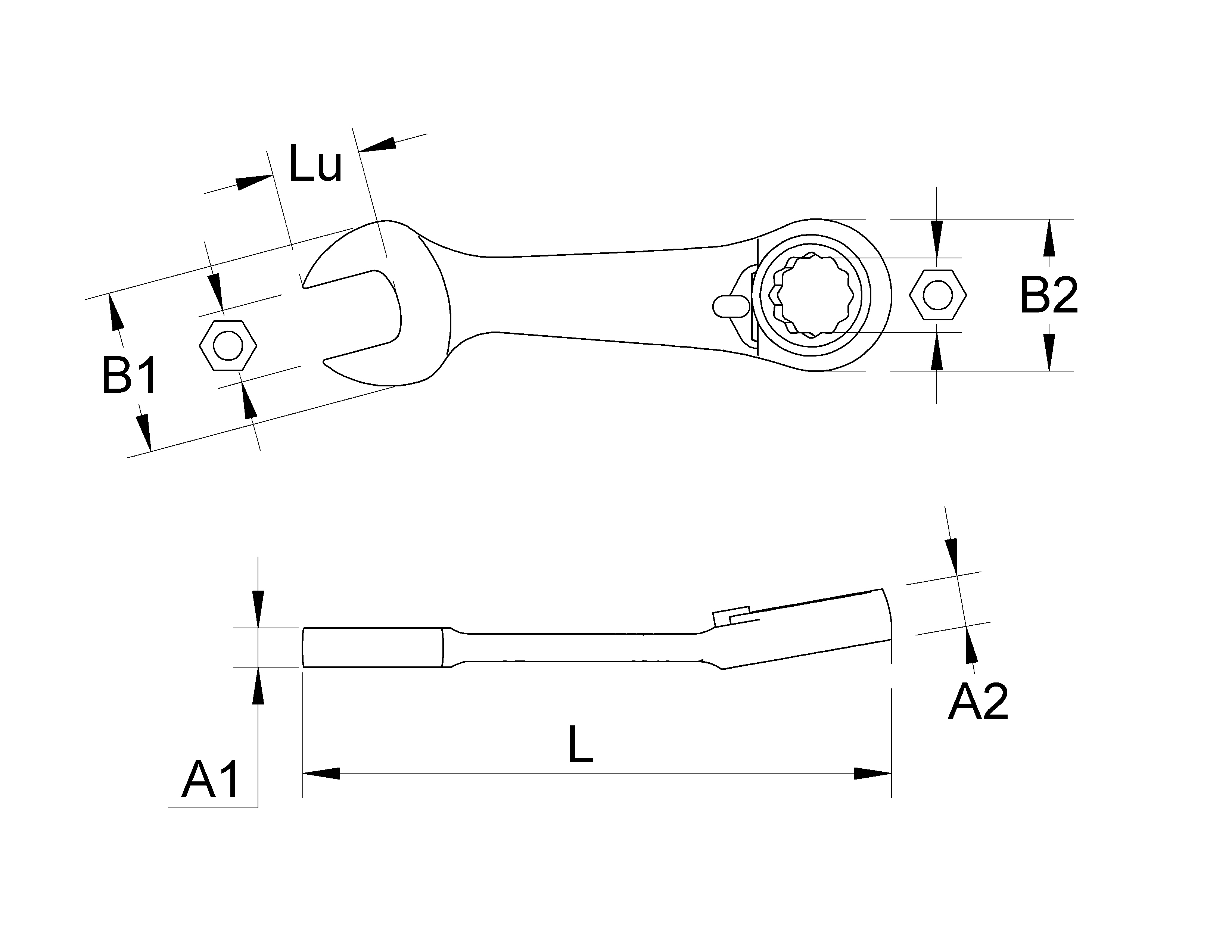

Specifications
| Dim mm | L mm | B1 mm | B2 mm | A1 mm | A2 mm | Lu mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 | 93 | 16,5 | 17,5 | 5 | 7,5 | 8,5 | 30 | E | 9013070001 | 1 | 3303809010513 |
| 13 | 106 | 26,5 | 25 | 6,5 | 9 | 14 | 65 | E | 9013130001 | 1 | 3303809010575 |
| 17 | 125,5 | 35.5 | 32 | 8 | 10,5 | 17,5 | 125 | E | 9013170001 | 1 | 3303809010612 |
