1000v Insulated Open-End Wrenches

Reference code: 9005140501
EAN Code: 3303809014139

Request the posting of this product in SEAP/SICAP

1000V INSULATED OPEN-END WRENCHES - Description

EN60900

1000V INSULATED OPEN-END WRENCHES - More Details

Wrenches designed for all work involving electrical voltages up to 1000 volts AC and 1500 volts DC. Color-coded for safety, the appearance of yellow indicates advanced tool wear, in which case the tool should be replaced. Each insulated wrench is tested to 10,000 V. For each production batch, a product sample is subjected to the following tests: 1-Destructive impact test, 2- Insulating material adhesion test, 3-Fire exposure test and 4-Penetration test. Complies with European standard EN60900.

Specifications

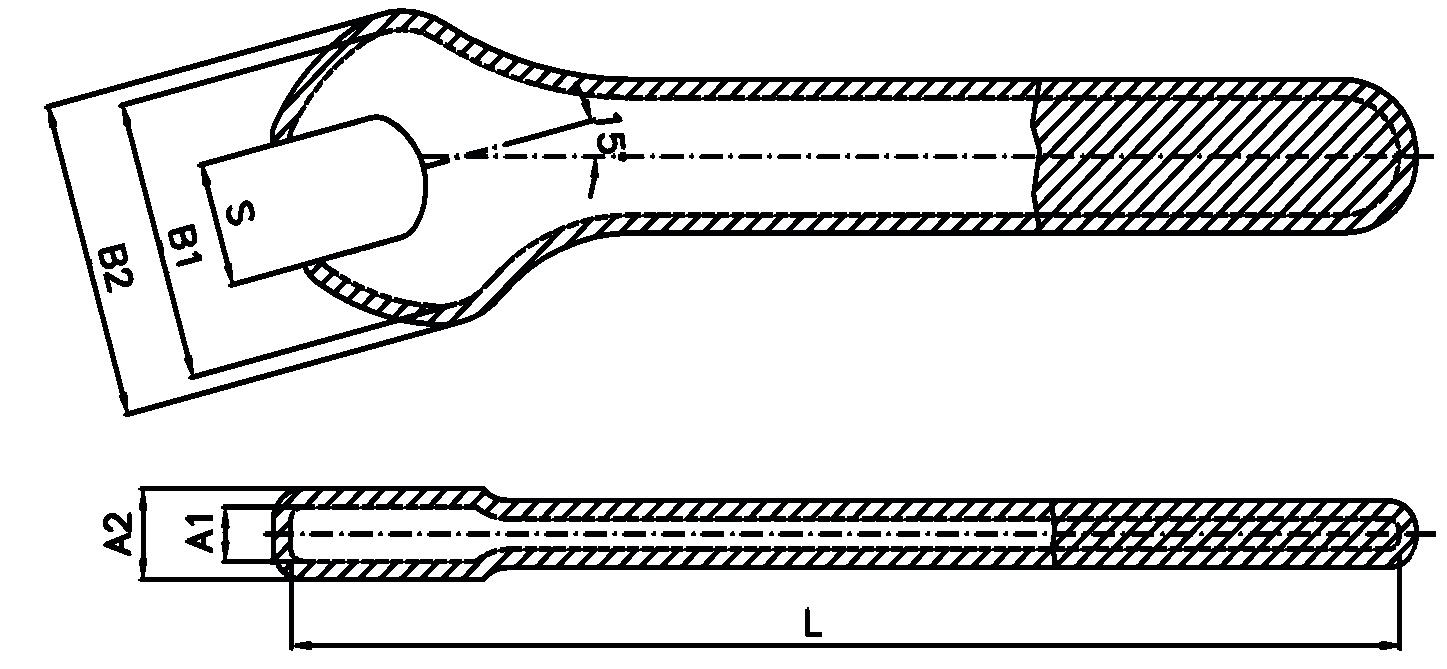

Dim. mm	L mm	Lu mm	A mm	B mm	g	G
10	110	12,4	8,3	27	33	E	9005100501	3303809014092
11	115	12,9	7,3	28	36	E	9005110501	3303809014108
12	128	13,8	7,9	31	51	E	9005120501	3303809014115
13	138	14,3	7,9	33	58	E	9005130501	3303809014122
14	143	17	8,7	35	83	E	9005140501	3303809014139
15	146	15,3	8,7	36	88	E	9005150501	3303809014146
17	158	19,7	10,3	41	116	E	9005170501	3303809014153
19	173	20,9	10,5	46	153	E	9005190501	3303809014160
