Ratcheting Combination Wrenches

Reference code: 9002090001
EAN Code: 3303809002099

Request the posting of this product in SEAP/SICAP

RATCHETING COMBINATION WRENCHES - Description

ISO 1711-1

RATCHETING COMBINATION WRENCHES - More Details

High approach speed for quality ratchets. Integrated ratchet system: no risk of accidental reversal. Reversible for quick change of direction: optimised productivity. 5° angle of recovery (6° for sizes 8 and 9). Compact footprint. Head inclined at 15°. Chrome-plated and satin-polished finish. Chrome Vanadium steel, the best steel for keys. Soft" hot embossing and markings for tactile comfort and easy cleaning. One fast side with the ratchet and one fork side for tightening, as soon as the lock is reached on the ratchet side (do not force the ratchet). ISO 1711-1.

Specifications

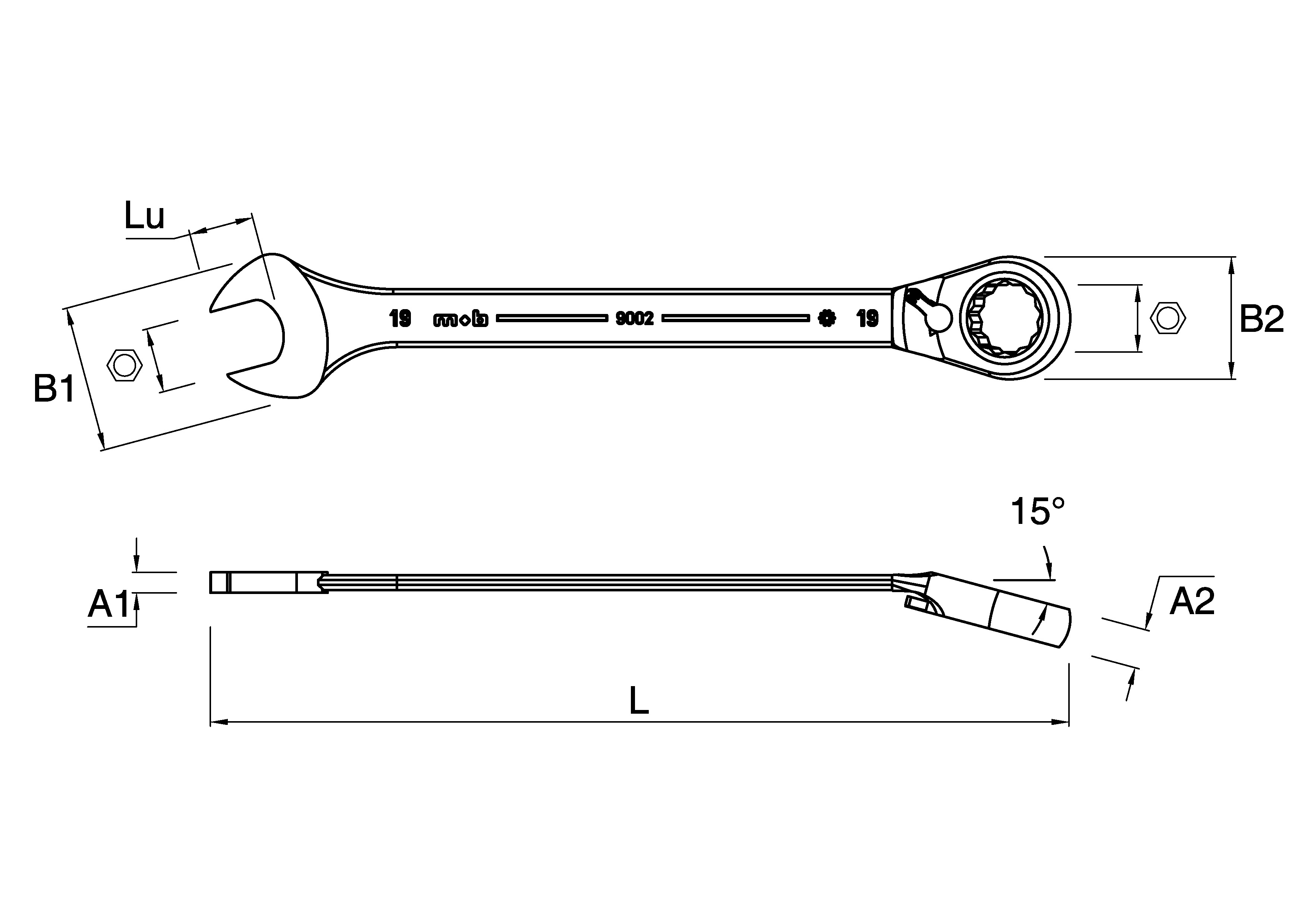

Dim mm	L mm	B1 mm	B2 mm	A1 mm	A2 mm	Lu mm	g	G
8	140	18	18	5	7	9,5	35	E	9002080001	1	3303809002082
9	149	19	19	5	7	10,5	40	E	9002090001	1	3303809002099
10	157	23	21	6	8	11,5	55	E	9002100001	1	3303809002105
11	165	25	23	6,5	8	12,5	70	E	9002110001	1	3303809021106
12	172	27	24	7	9	13	80	E	9002120001	1	3303809002129
13	183	28	26	7	9	14	95	E	9002130001	1	3303809002136
14	190	29	28	7	9	15	110	E	9002140001	1	3303809002143
15	198	33	30	8	10	15,5	140	E	9002150001	1	3303809002150
16	206	33	30	8	10	16,5	160	E	9002160001	1	3303809002167
17	225	38	34	9	11	17,5	195	E	9002170001	1	3303809002174
18	235	39	35	9	11	18	210	E	9002180001	1	3303809002181
19	245	42	36	10	12	20	245	E	9002190001	1	3303809002198
21	290	47	39	10	13	22	355	E	9002210001	1	3303809004932
22	290	47	39	10	13	23	345	E	9002220001	1	3303809004949
24	333	52	45,5	10	14,5	25,5	530	E	9002240001	1	3303809004956
27	333	57	51	10	14,5	30	610	E	9002270001	1	3303809014016
30	425	66	65	11,5	18	33	1125	E	9002300001	1	3303809014023
32	425	66	65	11,5	18	33	1105	E	9002320001	1	3303809014030
