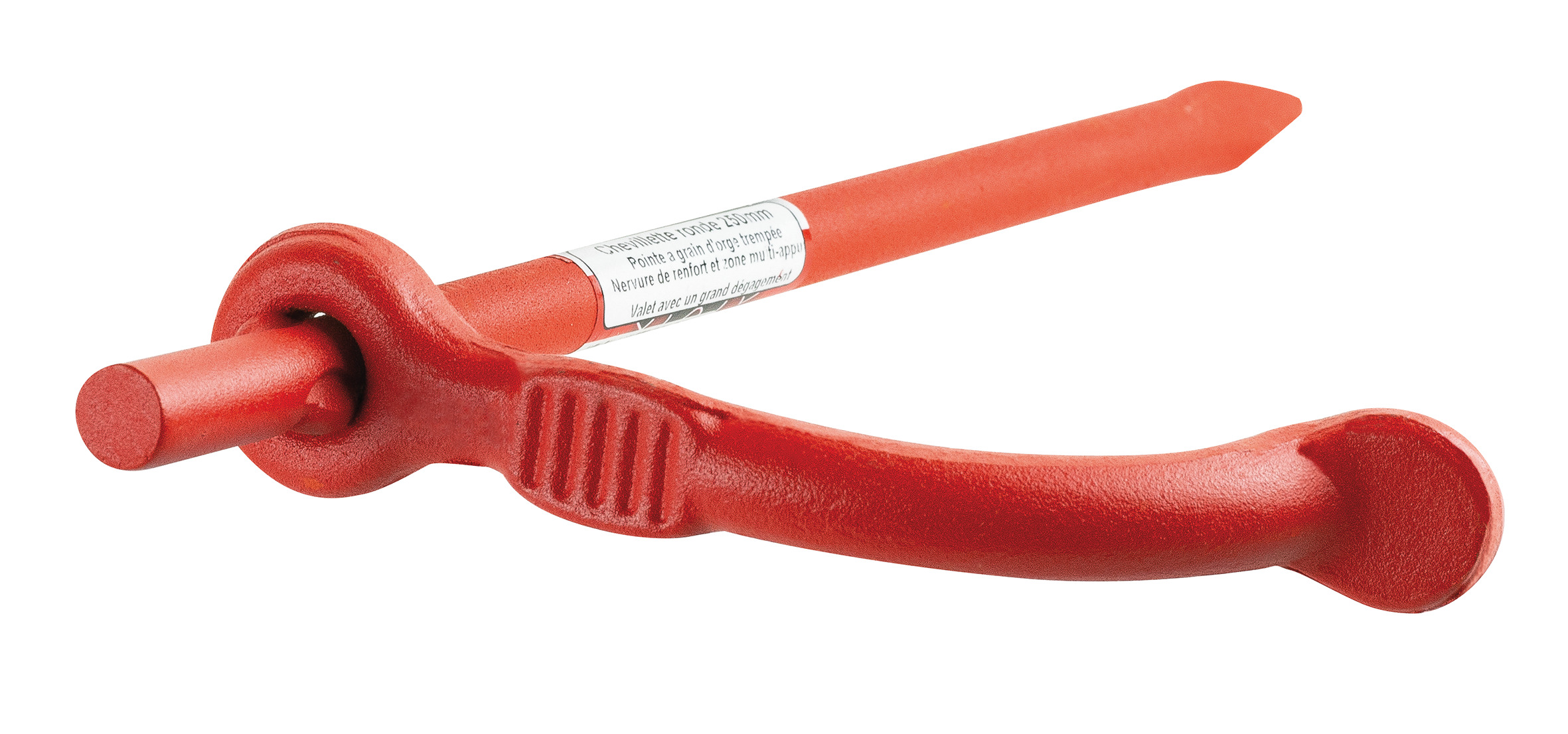

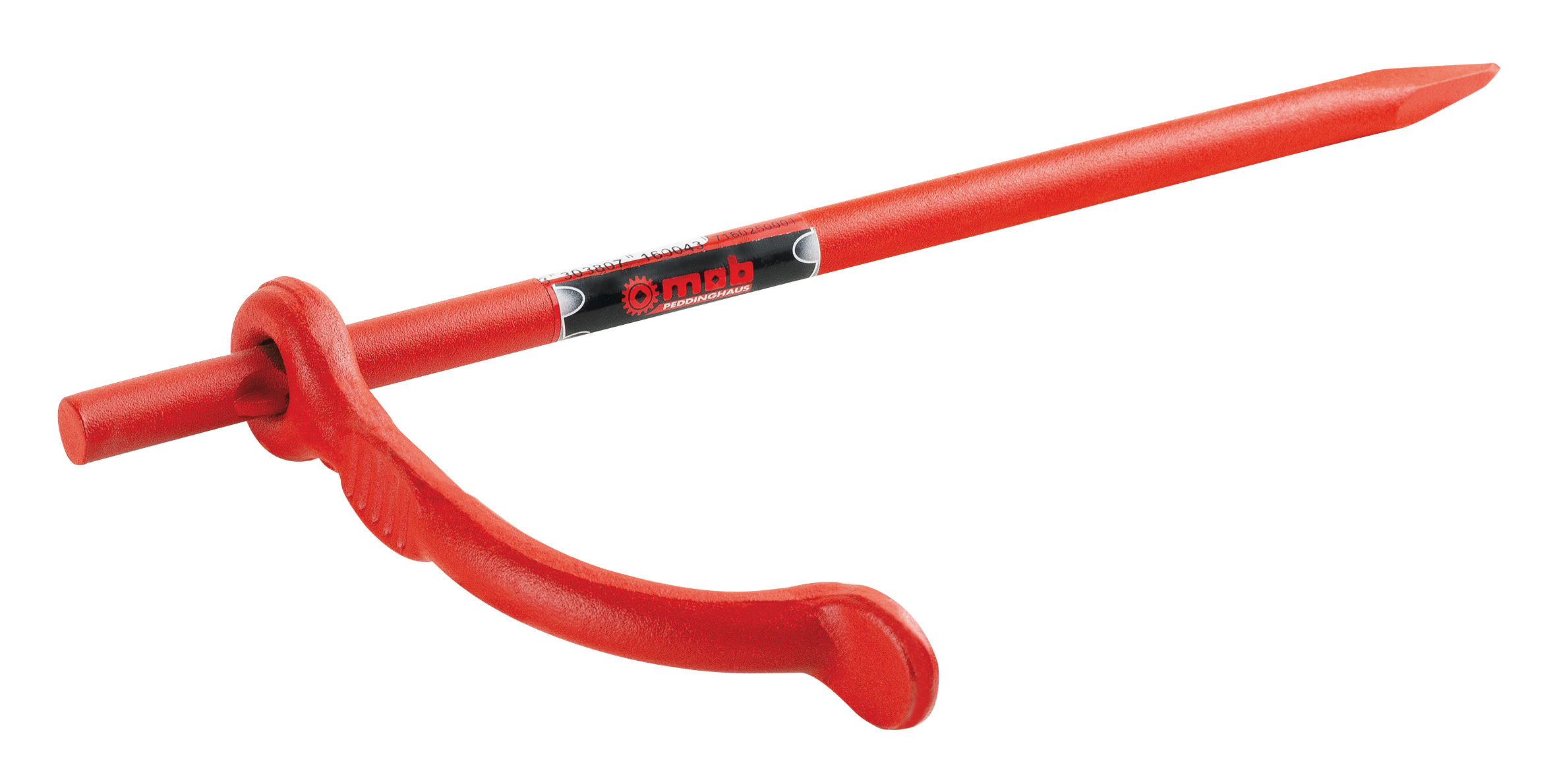

‘Redline’ Mason’S Pin
Loading...
- Reference code: 7160250001
- EAN Code: 3303807160043
Request the posting of this product in
SEAP/SICAP
‘REDLINE’ MASON’S PIN - Description
Round shank. Forged. 50-56 HRC.
‘REDLINE’ MASON’S PIN - More Details
Fabricate prin forjare, din otel cu continut ridicat de carbon: C45 pentru cric, C55 penru varf. Suprafata vopsita in camp electrostatic cu vopsea epoxidica, texturata si tratata termic. Pentru cofraje de mici dimensiuni. Rezistenta crescuta la impact si abraziune.
Specifications
| L mm | Ø mm | D mm | E mm |  g | G |  | |||
|---|---|---|---|---|---|---|---|---|---|
| 200 | 10 | 35 | 7 | 120 | 249 | G30 | 7160200001 | 10 | 3303807160029 |
| 250 | 10 | 35 | 7 | 120 | 280 | G30 | 7160250001 | 10 | 3303807160043 |
| 300 | 10 | 35 | 7 | 120 | 311 | G30 | 7160300001 | 10 | 3303807160067 |
