Tri-Material Sculptor's Chisel On Card
Loading...
- Reference code: 7020081701
- EAN Code: 3303807020514
Request the posting of this product in
SEAP/SICAP
TRI-MATERIAL SCULPTOR'S CHISEL ON CARD - Description

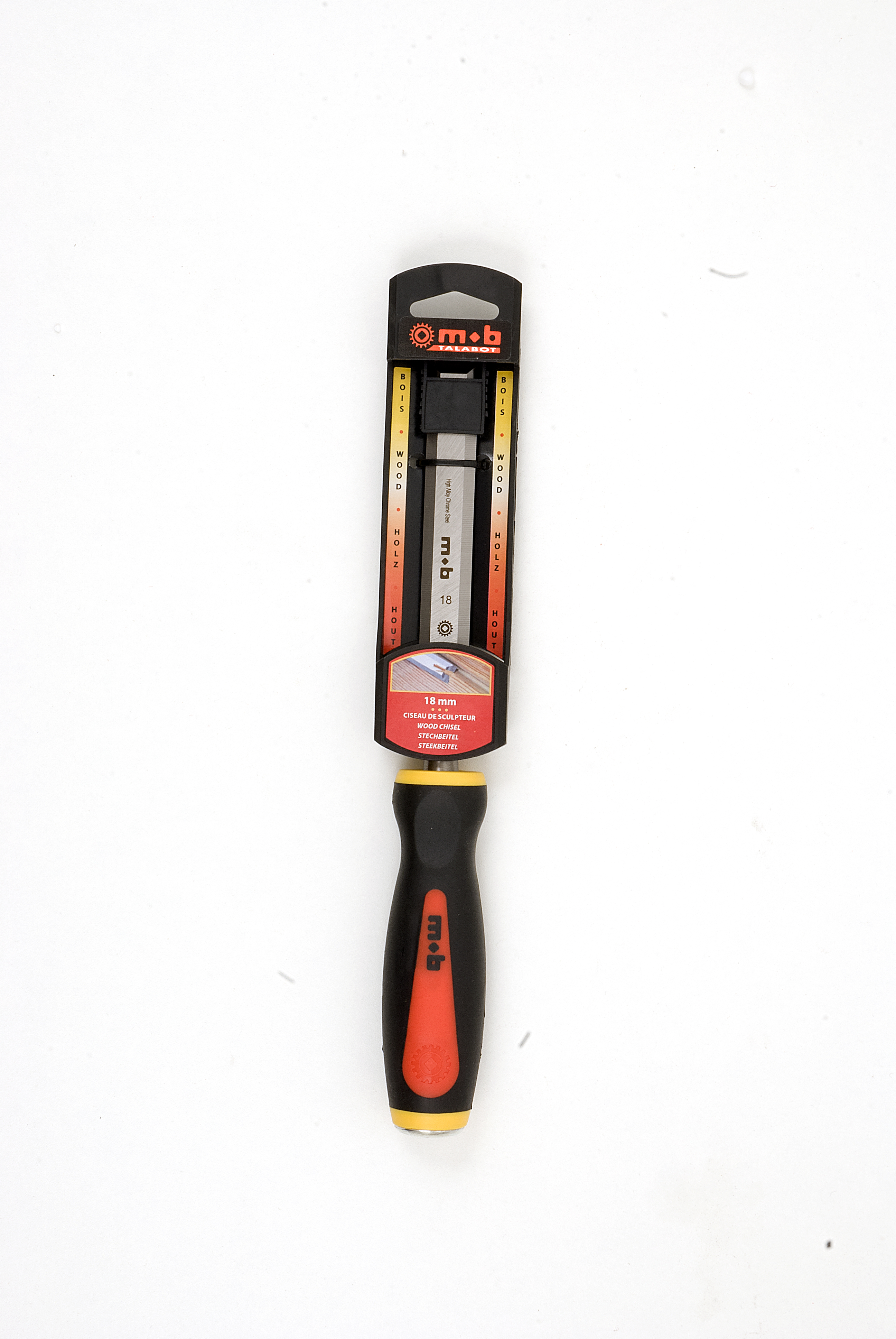

Tri-material handle. On card.
TRI-MATERIAL SCULPTOR'S CHISEL ON CARD - More Details
Ergonomic handle. Metal strike zone: does not mushroom or warp. Comfortable elastomer - Polypropylene body. Will not roll when set down. The tang does not twist in the handle thanks to its angular-section assembly. STRENGTH - Forged blade in high-carbon chromium steel. Hardness 59-63HRC. FINISHING AND MARKING - Burnishing and protective varnish. - Precise dimensional marking for easy identification. PRECISION - Fine βfaceβ machining for aggressive, long-lasting, high-straightness cutting. - 25Β° angle. SAFETY - Protective tip - No chamfer on sides for 4mm size.
Specifications
| I mm | L mm | A mm | E mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|
| 4 | 254 | 119 | 3 | 85 | G10 | 7020041701 | 3 | 3303807020491 |
| 6 | 254 | 119 | 3 | 90 | G10 | 7020061701 | 3 | 3303807020507 |
| 8 | 264 | 129 | 3 | 95 | G10 | 7020081701 | 3 | 3303807020514 |
| 10 | 264 | 129 | 3 | 120 | G10 | 7020101701 | 3 | 3303807020521 |
| 12 | 269 | 134 | 3,5 | 130 | G10 | 7020121701 | 3 | 3303807020538 |
| 14 | 269 | 134 | 3,5 | 135 | G10 | 7020141701 | 3 | 3303807020545 |
| 15 | 269 | 134 | 3,5 | 138 | G10 | 7020151701 | 3 | 3303807020552 |
| 16 | 270 | 136 | 3,5 | 142 | G10 | 7020161701 | 3 | 3303807020569 |
| 18 | 279 | 144 | 3,5 | 160 | G10 | 7020181701 | 3 | 3303807020576 |
| 20 | 284 | 149 | 3,5 | 165 | G10 | 7020201701 | 3 | 3303807020583 |
| 22 | 284 | 149 | 3,5 | 175 | G10 | 7020221701 | 3 | 3303807020590 |
| 25 | 294 | 159 | 4 | 215 | G10 | 7020251701 | 3 | 3303807020606 |
| 30 | 299 | 164 | 4 | 235 | G10 | 7020301701 | 3 | 3303807020620 |
| 35 | 309 | 174 | 4,5 | 275 | G10 | 7020351701 | 3 | 3303807020637 |
| 40 | 309 | 174 | 4,5 | 330 | G10 | 7020401701 | 3 | 3303807020644 |
