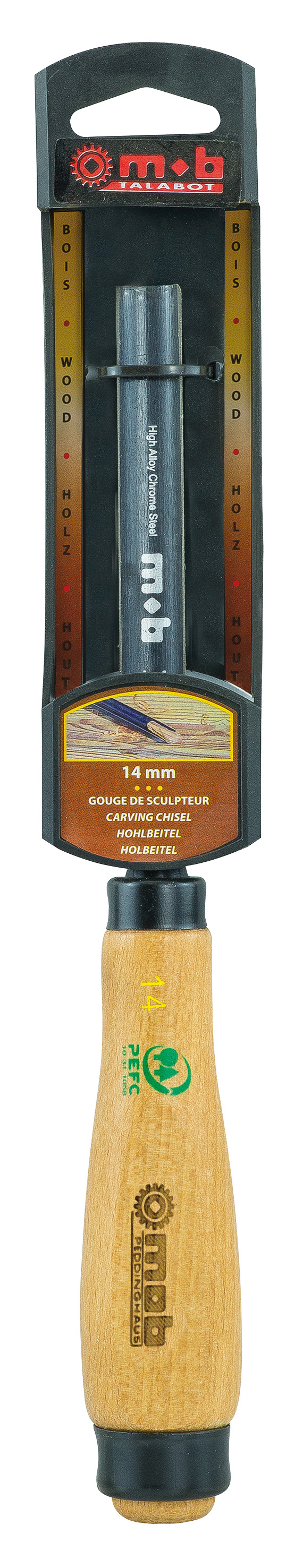

Sculptor's Chisel
Loading...
- Reference code: 7020080201
- EAN Code: 3303807020071
Request the posting of this product in
SEAP/SICAP
SCULPTOR'S CHISEL - Description
Wooden handle.PEFC Label.
SCULPTOR'S CHISEL - More Details
ERGONOMICS: high density wood: (600 kg / m3). ROBUSTNESS AND MAINTENANCE: precision striking thanks to a flat end. Reinforcement shell to avoid "mushrooming" and bursting of the wood. The shape prevents the tool from rolling. The tang does not twist in the handle thanks to its angular section assembly. STRENGTH: forged blade made of high-carbon steel and chrome. Hardness 59-63 HRC. FINISHING AND MARKING: burnishing and protective varnish. Precise marking of dimensions for easy identification. PRECISION: fine machining "faces" for a cutting edge of great straightness aggressive and durable. Angle at 25 Β°. SAFETY: Protective cap.
Specifications
| I mm | L mm | A mm | E mm |  g | G |  | ||
|---|---|---|---|---|---|---|---|---|
| 4 | 254 | 119 | 3 | 65 | G10 | 7020040201 | 5 | 3303807020019 |
| 6 | 254 | 119 | 3 | 70 | G10 | 7020060201 | 5 | 3303807020040 |
| 8 | 264 | 129 | 3 | 75 | G10 | 7020080201 | 5 | 3303807020071 |
| 10 | 264 | 129 | 3 | 100 | G10 | 7020100201 | 5 | 3303807020101 |
| 12 | 269 | 134 | 3,5 | 110 | G10 | 7020120201 | 5 | 3303807020132 |
| 14 | 269 | 134 | 3,5 | 115 | G10 | 7020140201 | 5 | 3303807020163 |
| 15 | 269 | 134 | 3,5 | 118 | G10 | 7020150201 | 5 | 3303807020194 |
| 16 | 279 | 144 | 3,5 | 135 | G10 | 7020160201 | 5 | 3303807020224 |
| 18 | 279 | 144 | 3,5 | 140 | G10 | 7020180201 | 5 | 3303807020255 |
| 20 | 284 | 149 | 3,5 | 145 | G10 | 7020200201 | 5 | 3303807020286 |
| 22 | 284 | 149 | 3,5 | 155 | G10 | 7020220201 | 5 | 3303807020316 |
| 25 | 294 | 159 | 4 | 195 | G10 | 7020250201 | 5 | 3303807020347 |
| 30 | 299 | 164 | 4 | 215 | G10 | 7020300201 | 5 | 3303807020408 |
| 35 | 309 | 174 | 4,5 | 255 | G10 | 7020350201 | 5 | 3303807020439 |
| 40 | 309 | 174 | 4,5 | 310 | G10 | 7020400201 | 5 | 3303807020460 |
