Aluminium Platform
Loading...
- Reference code: 500530
- EAN Code: 3479135005308
Request the posting of this product in
SEAP/SICAP
ALUMINIUM PLATFORM - Description

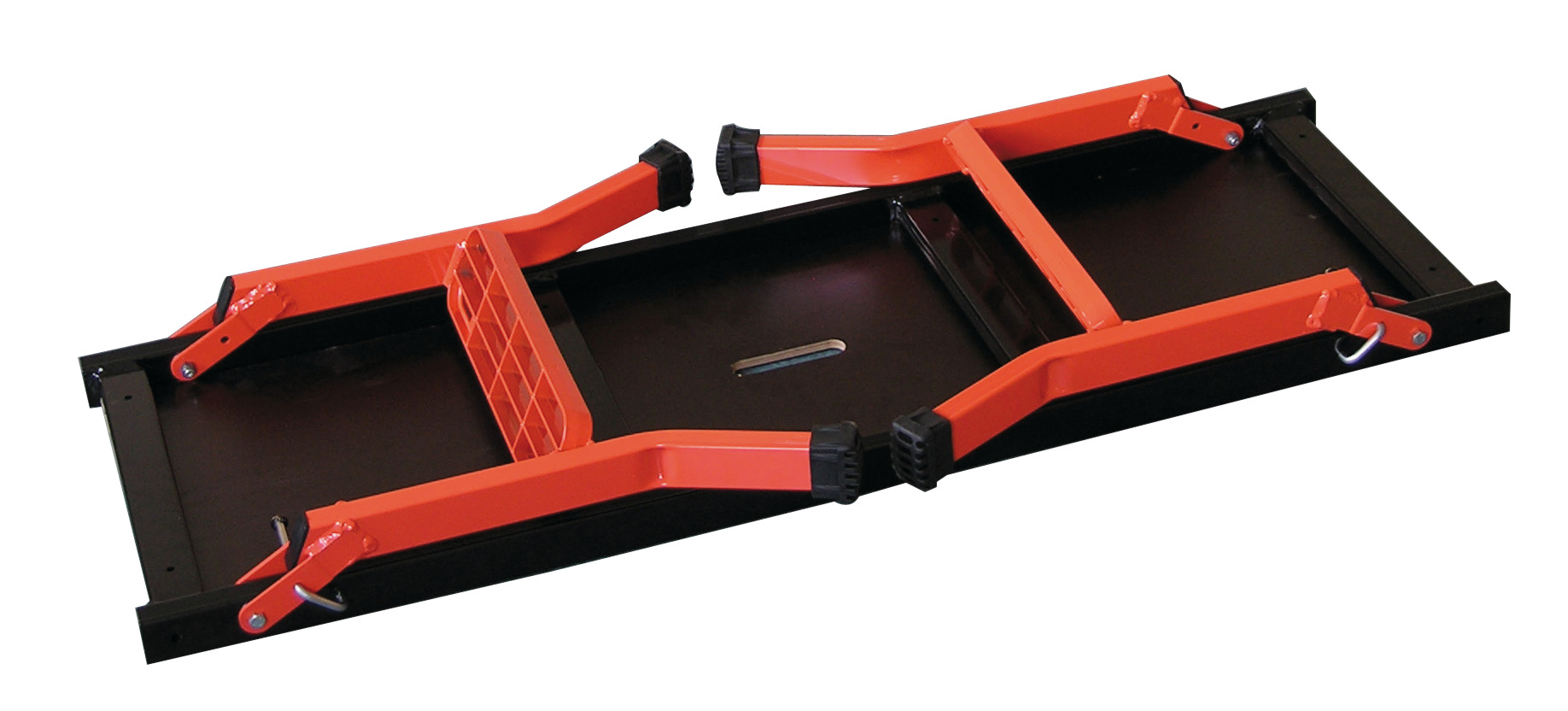

Lightweight aluminum platform, easily foldable and transportable
ALUMINIUM PLATFORM - More Details
Lightweight aluminum platform, easily foldable and transportable
FEATURES
ROBUST CONSTRUCTION
OPTIONAL TOOL HOLDER
FEATURES
- - Platform height: 0.49 m β allows use without guardrail
- - Working height: 2.49 m, ideal for interior work
- - Work platform in non-slip plywood with a thickness of 9 mm, mixed FSC certified
- - Cast aluminum grated steps measuring 370 x 90 mm: deep and non-slip
- - Non-slip pads for perfect stability
- - With carrying handle for the 125 x 42 cm model
ROBUST CONSTRUCTION
- - 2 mm thick aluminum profiles
- - Complete assembly by tenon-mortise and welding ensuring great longevity
- - Articulation of the 2 legs with reinforced bearings
- - Double blocking when opening by pinning and supporting the uprights
- - Complies with the safety requirements of decree 96 333 of 04/10/1996 and standard NF E85-200
- - Epoxy paint
- - Payload: 150 kg

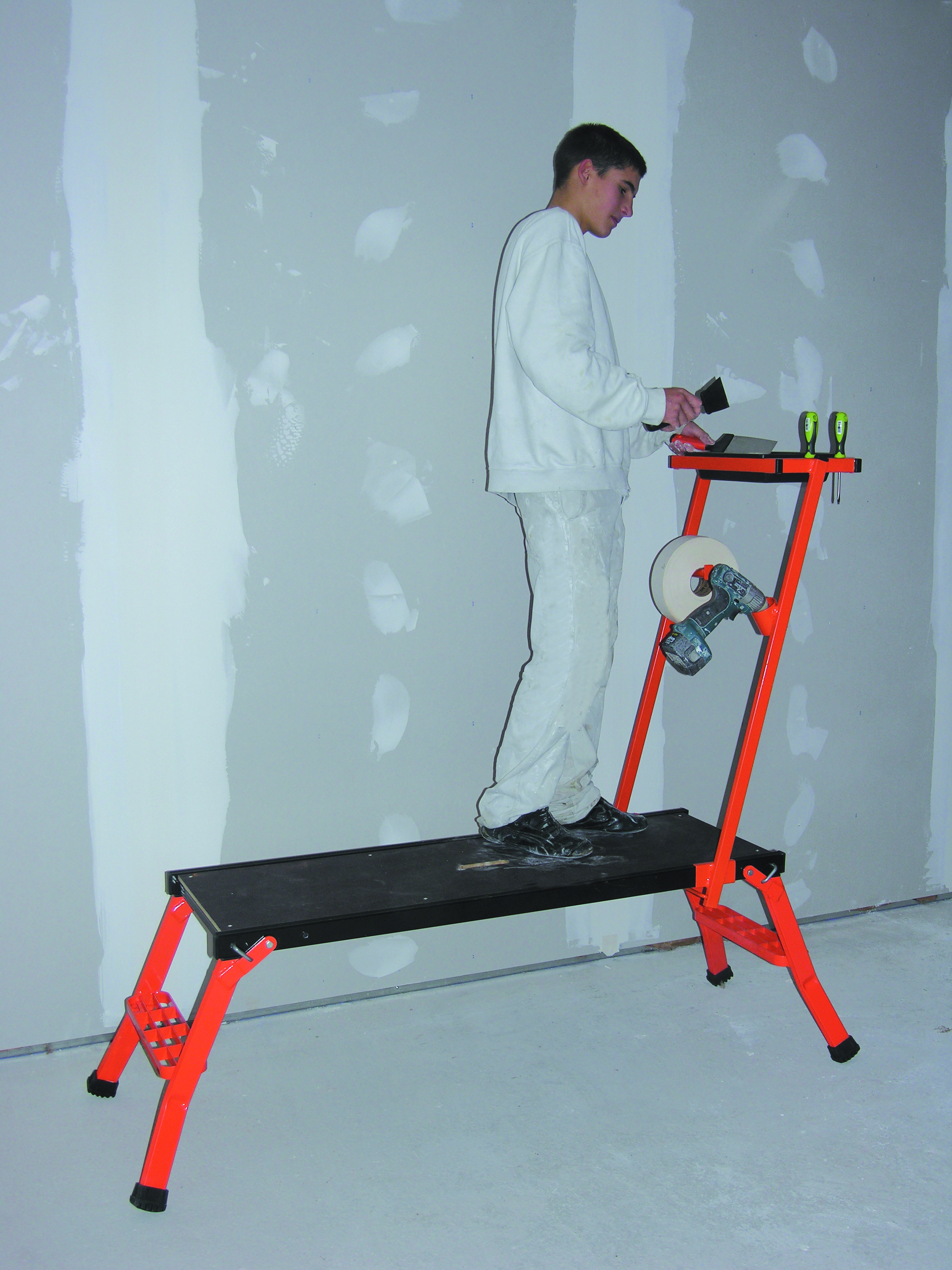

OPTIONAL TOOL HOLDER
- - Adaptable to aluminum platforms ref. 500510 and 500530
- - Equipped with a screwdriver holder, screwdriver housings, a roll holder of joint tape or masking adhesives and a removable plaster tray
Specifications
| Platform dim. cm | Nbr of steps, including the platform | Platform height cm | Max working height cm | payload kg |  kg | G |  | ||
|---|---|---|---|---|---|---|---|---|---|
| 125 x 42 | 2 | 49 | 249 | 150 | 9 | 5 | 500510 | 1 | 3479135005100 |
| 83 x 42 | 2 | 49 | 249 | 150 | 7 | 5 | 500530 | 1 | 3479135005308 |
