Equipment For Removing Formwork Boards
Loading...
- Reference code: 309910
- EAN Code: 3479133099101
Request the posting of this product in
SEAP/SICAP
EQUIPMENT FOR REMOVING FORMWORK BOARDS - Description

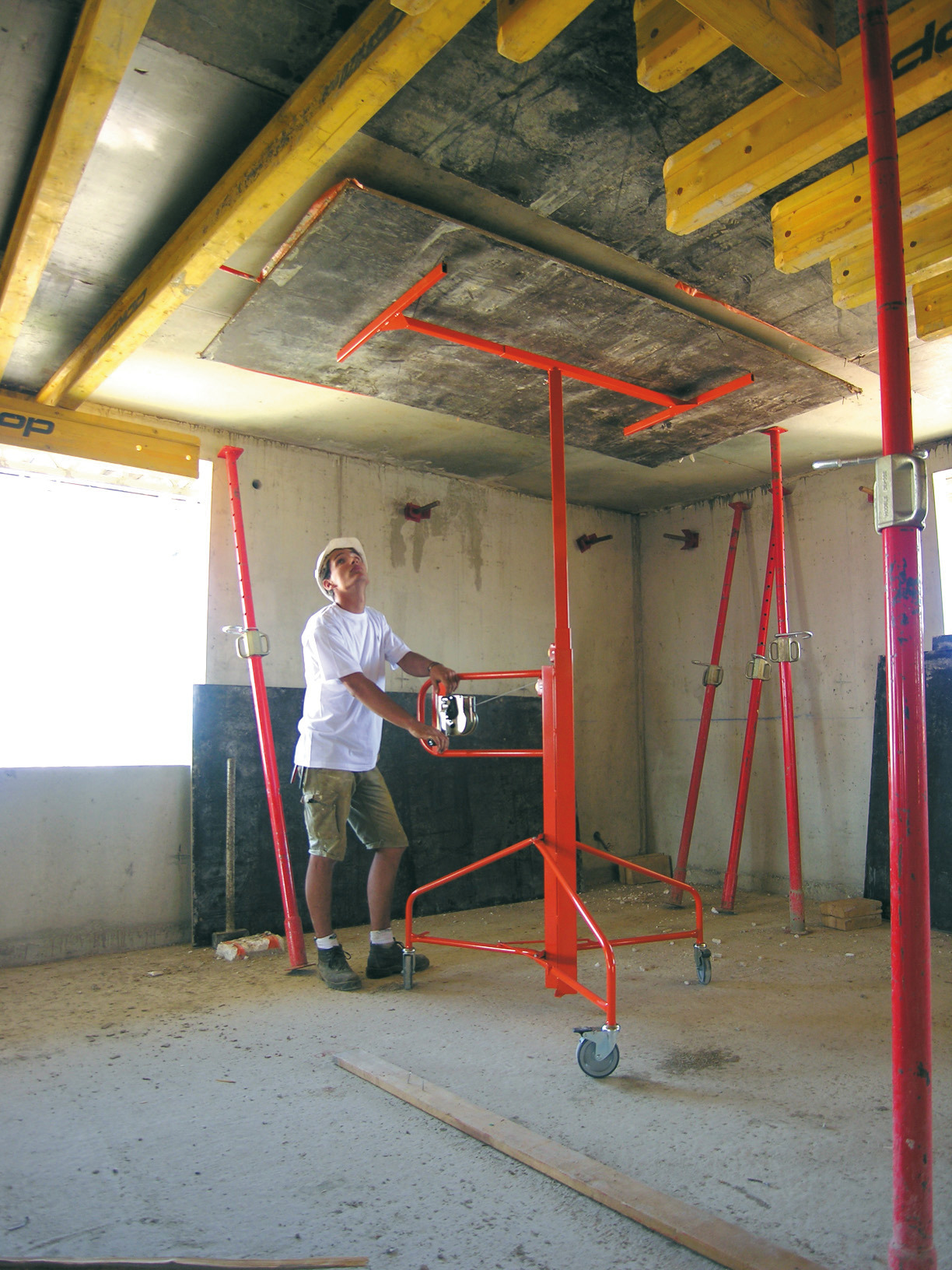

Allows formwork panels to be lowered easily and safely from a height. For all types of formwork panels.
USE
- Allows all types of formwork panels to be lowered safely and effortlessly
GUARANTEED SAFETY
- Patented double cable: safety system consisting of 1 working cable and 1 anti-fall safety cable
WORKING COMFORT
- Braking system integrated into the anti-return winch fixed to the guiding handle, making the machine
easy to manoeuvre
- Arm wheelbase: 1.52 m.
- Footprint: 1.15 x 1.15 x 1.10 m, providing great stability
GREAT STABILITY
- Can pass through a 0.73 m door without folding the base
- 3 Ø 125 mm wheels, 2 of which are fitted with a swivel and rolling lock system
- Easy to assemble and dismantle
- Maximum load 75 kg
EQUIPMENT FOR REMOVING FORMWORK BOARDS - More Details
Allows formwork panels to be lowered easily and safely from a height. For all types of formwork panels.USE
- - Allows all types of formwork panels to be lowered safely and effortlessly
- - Patented double cable: safety system consisting of 1 working cable and 1 anti-fall safety cable
- - Braking system integrated into the anti-return winch fixed to the guiding handle, making the machine
- - Arm wheelbase: 1.52 m.
- - Footprint: 1.15 x 1.15 x 1.10 m, providing great stability
- - Can pass through a 0.73 m door without folding the base
- - 3 Ø 125 mm wheels, 2 of which are fitted with a swivel and rolling lock system
- - Easy to assemble and dismantle
- - Maximum load 75 kg
Specifications
| Max. load kg | L m | Width m |  kg | G |  | ||||
|---|---|---|---|---|---|---|---|---|---|
| 75 | 3,50 | 1,42 | 1,52 | 0,75 | 37 | 309910 | 1 | 3479133099101 |
