BURGHIU RECTIFICAT HSS PENTRU METAL - COBALT 5%

Burghiu Rectificat Hss Pentru Metal - Cobalt 5%

Reference code: 3075V14X160

Request the posting of this product in SEAP/SICAP

BURGHIU RECTIFICAT HSS PENTRU METAL - COBALT 5% - Description

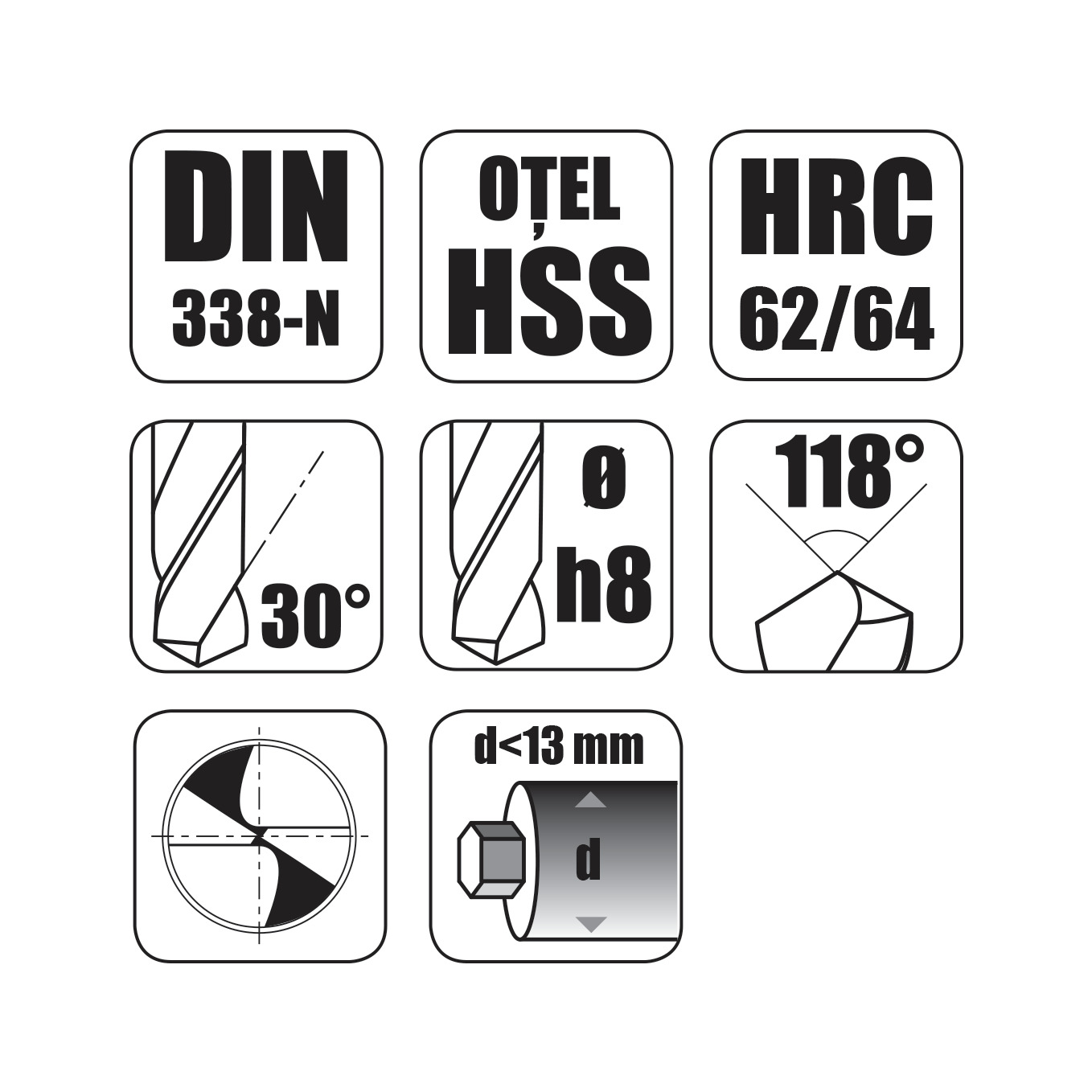

- Cobalt 5%. - Otel rapid cu tratament special. - DIN 338-N. - Duritate: 62-64 HRC. - Coada cu reductie la Ø 13 mm. - Unghi spirala: 30°. - Toleranta diametru: 8. - Unghi varf: 118°. - Ascutire pe diagonala DIN 1412C. - pentru: Metal, Otel slab aliat R<75

BURGHIU RECTIFICAT HSS PENTRU METAL - COBALT 5% - More Details

Cobalt 5%. - Otel rapid cu tratament special. - DIN 338-N. - Duritate: 62-64 HRC. - Coada cu reductie la Ø 13 mm. - Unghi spirala: 30°. - Toleranta diametru: 8. - Unghi varf: 118°. - Ascutire pe diagonala DIN 1412C. - pentru: Metal, Otel slab aliat R<75

Specifications

L mm
Ø D: 1 mm	3075V01X034	4.87
Ø D: 1,5 mm	3075V1,5X040	5.33
Ø D: 2 mm	3075V02X049	5.99
Ø D: 2,5 mm	3075V2,5X057	6.59
Ø D: 3 mm	3075V03X061	7.26
Ø D: 3,3 mm	3075V3,3X065	8.95
Ø D: 3,5 mm	3075V3,5X070	8.35
Ø D: 4 mm	3075V04X075	9.45
Ø D: 4,2 mm	3075V4,2X075	9.45
Ø D: 4,5 mm	3075V4,5X080	10.96
Ø D: 5 mm	3075V05X086	12.72
Ø D: 5,5 mm	3075V5,5X093	13.83
Ø D: 6 mm	3075V06X093	15.59
Ø D: 6,5 mm	3075V6,5X101	17.25
Ø D: 6,8 mm	3075V6,8X109	17.94
Ø D: 7 mm	3075V07X109	20.54
Ø D: 7,5 mm	3075V7,5X109	23.82
Ø D: 8 mm	3075V08X117	30.52
Ø D: 8,5 mm	3075V8,5X117	32.87
Ø D: 9 mm	3075V09X125	36.14
Ø D: 9,5 mm	3075V9,5X125	39.55
Ø D: 10 mm	3075V10X133	47.92
Ø D: 10,2 mm	3075V10,2133	49.34
Ø D: 10,5 mm	3075V10,5133	55
Ø D: 11 mm	3075V11X142	55.72
Ø D: 11,5 mm	3075V11,5142	64.45
Ø D: 12 mm	3075V12X151	75.01
Ø D: 12,5 mm	3075V12,5151	78.53
Ø D: 13 mm	3075V13X151	85.53
Ø D: 13,5 mm	3075V13,5X160	101.22
Ø D: 14 mm	3075V14X160	105.58
Ø D: 14,5 mm	3075V14,5X169	117.22
Ø D: 15 mm	3075V15X169	118
Ø D: 15,5 mm	3075V15,5X178	130.96
Ø D: 16 mm	3075V16X178	138.58
