Pillar Slim
Loading...
- Reference code: 1142150010
- EAN Code: 0613548064856
Request the posting of this product in
SEAP/SICAP
Pillar slim - Description
Tip dantura: semifina. AB: 73,5 mm.
Pillar slim - More Details
- - Internationally recognized Vallorbe quality. CHARACTERISTICS: sharp angles, very fine cut tips. Made from Chrome steel. Hardness 66 HRC. High precision blanks. Very great regularity of size. Swiss made. The precision files have a bristle at the end so that they can be inserted into the file if necessary.
Specifications
| Cut 00 | Cut 0 | Cut 1 | Cut 2 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

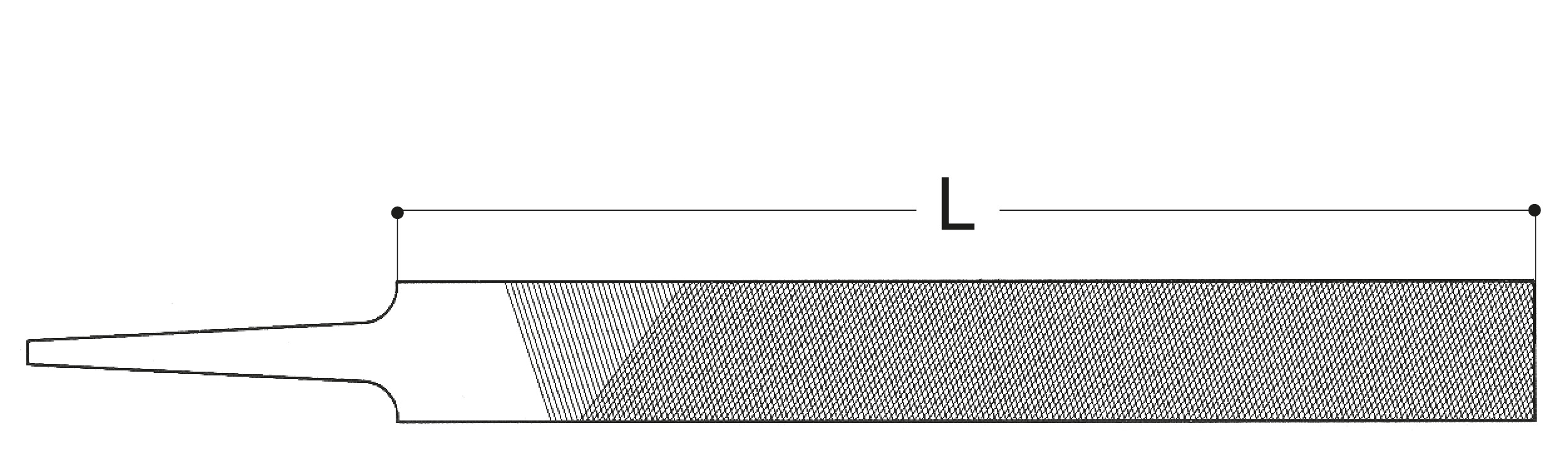

| L mm | Vallorbe Ref. - L inches | Dim mm |  | | | | ||||||||
| 100 | LP1142-4 | 4,6 x 2,2 | 1142100010 | 12 | 0613548064764 | 1142100210 | 12 | 0613548064795 | ||||||
| 150 | LP1142-6 | 6,5 x 3 | 1142150910 | 12 | 0613548064863 | 1142150010 | 12 | 0613548064856 | 1142150110 | 12 | 0613548064870 | 1142150210 | 12 | 0613548064887 |
| 200 | LP1142-8 | 8,3 x 3,8 | 1142200910 | 12 | 0613548064962 | 1142200010 | 12 | 0613548064955 | 1142200110 | 12 | 0613548064979 | 1142200210 | 12 | 0613548064986 |
| 250 | LP1142-10 | 9,3 x 4,3 | 1142250010 | 12 | 0613548064733 | 1142250210 | 12 | 0613548064757 | ||||||
