Bolt Cutters Forged Arms Axial Cutting
Loading...
- Reference code: 0514070610
- EAN Code: 3303800403031
Request the posting of this product in
SEAP/SICAP
BOLT CUTTERS FORGED ARMS AXIAL CUTTING - Description
Axial cross-section. Forged arms. Handles with textured sheaths.
BOLT CUTTERS FORGED ARMS AXIAL CUTTING - More Details
ROBUSTNESS.. Fully forged arms.. Ideal for extreme site conditions.. Crushproof.. Resistant to accidental twisting: can be straightened.. Handles with textured anti-slip and anti-cold grip.
FORGED AND HARDENED BLADES.. Undeformable.. Long service life (hardness: 45 HRC).. Workpiece stop with protective plate.. Axial cutting.. Quick, easy adjustment of blade spacing with a single screw.
FORGED AND HARDENED BLADES.. Undeformable.. Long service life (hardness: 45 HRC).. Workpiece stop with protective plate.. Axial cutting.. Quick, easy adjustment of blade spacing with a single screw.
Specifications

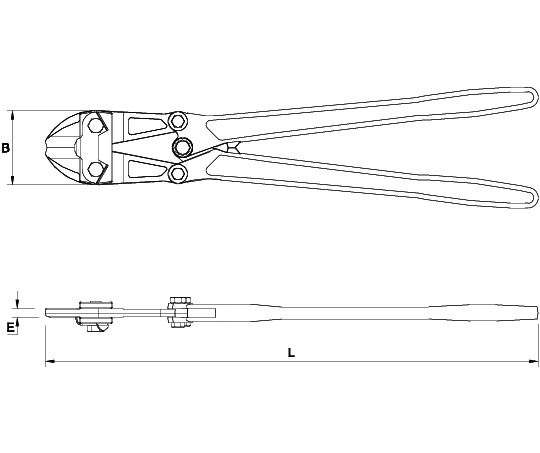

| L mm | Thickness mm | E mm | B mm | Maximum of cutting capacity 80 daN/mm2 | Maximum of cutting capacity 140 daN/mm2 |  g | G |  | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 450 | 115 | 28 | 8 | 69 | Γ 8 mm | Γ 6 mm | 1670 | G30 | 0514050610 | 1 | 3303800403017 | |
| 600 | 145 | 33 | 10 | 85 | Γ 10 mm | Γ 7 mm | 2460 | G30 | 0514060610 | 1 | 3303800403024 | |
| 750 | 185 | 38.5 | 11 | 100 | Γ 12 mm | Γ 9 mm | 4115 | G30 | 0514070610 | 1 | 3303800403031 | |
| 900 | 210 | 42 | 13 | 110 | Γ 14 mm | Γ 10 mm | 5515 | G30 | 0514080610 | 1 | 3303800403048 | |
